GS72108ATJ

Features: • CMOS low power operation: 135/115/95/80 mA at minimum cycle time• Single 3.3 V power supply• All inputs and outputs are TTL-compatible• Fully static operation• Industrial Temperature Option: 40° to 85• Package line up J: 400 mil, 36-pin SOJ package T...

product image

GS72108ATJ Picture
See larger image
SeekIC No. : 004355683 Detail

GS72108ATJ: Features: • CMOS low power operation: 135/115/95/80 mA at minimum cycle time• Single 3.3 V power supply• All inputs and outputs are TTL-compatible• Fully static operationR...

GS72108ATJ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GS72108ATJ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS low power operation: 135/115/95/80 mA at minimum cycle time
• Single 3.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40° to 85
• Package line up J: 400 mil, 36-pin SOJ package TP: 400 mil, 44-pin TSOP Type II package GP:Pb-free 400 mil, 44-pin TSOP Type II package
• Pb-Free TSOP-II package available




Pinout

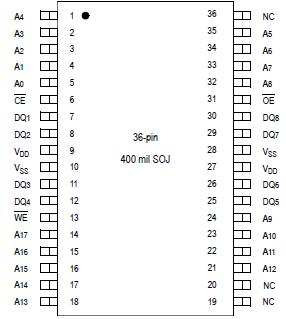

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply Voltage VDD 0.5 to +4.6 V
Input Voltage VIN 0.5 to VDD +0.5
( 4.6 V max.)		 V
Output Voltage VOUT 0.5 to VDD +0.5
( 4.6 V max.)		 V
Allowable power dissipation PD 0.7 W
Storage temperature TSTG 55 to 150

Note:
Permanent device damage may occur if Absolute Maximum Ratings are exceeded. Functional operation shall be restricted to Recommended Operating Conditions. Exposure to higher than recommended voltages for extended periods of time could affect device reliability.




Description

The GS72108A is a high speed CMOS Static RAM organized as 262,144 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTLcompatible.

The GS72108A is available in 400 mil SOJ and 400 mil TSOP Type-II packages.
