GS70328

Features:

• Fast access time: 7, 8, 10, 12, 15 ns
• 75/65/50/50/50 mA at max cycle rate
• Single 3.3 V ± 0.3 V power supply
• All inputs and outputs are TTL-compatible
• Fully static operation
• Industrial Temperature Option: 40° to 85°C
• Package line up
   SJ: 300 mil, 28-pin SOJ package
   TS: 8 mm x 13.4 mm, 28-pin TSOP Type I package

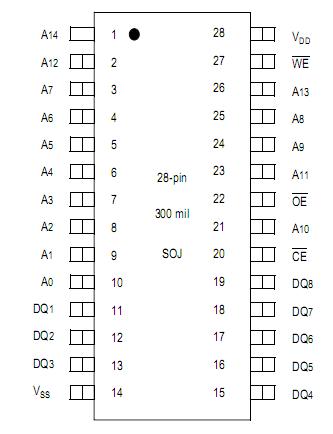

Pinout




Specifications

Parameter	Symbol	Rating	Unit
Supply Voltage	VDD	0.5 to +4.6	V
Input Voltage	VIN	0.5 to VDD +0.5 ( 4.6 V max.)	V
Output Voltage	VOUT	0.5 to VDD +0.5 ( 4.6 V max.)	V
Allowable power dissipation	PD	0.7	W
Storage temperature	TSTG	55 to 150

Description

The GS70328 is a high speed CMOS static RAM organized as 32,763 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. It operates on a single 3.3 V power supply, and all inputs and outputs are TTL-compatible. The GS70328 is available in  300 mil, 28-pin SOJ and 8 x 13.4 mm2, 28-pin TSOP Type-I packages.
