GS1522

Features:

• SMPTE 292M compliant
• 20:1 parallel to serial conversion
• NRZ(I) encoder & SMPTE scrambler with selectable bypass
• NRZ to NRZ(I) serial data conversion
• 1.485Gb/s and 1.485/1.001Gb/s operation
• lock detect output
• selectable DUAL or QUAD 75Ω cable driver outputs
• 8 bit or 10 bit input data support
• 20 bit wide inputs
• 3.3V and 5V CMOS/TTL compatible inputs
• single +5.0V power supply




Application

SMPTE 292M Serial Digital Interfaces for Video Cameras, Camcorders, VTR's, Signal Generators, Portable Equipment, and NLE's.

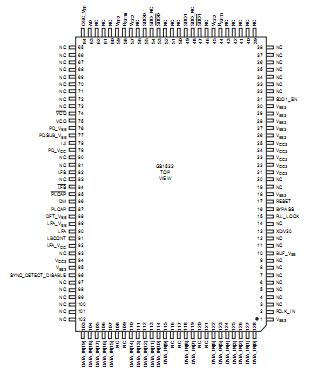

Pinout






Specifications

PARAMETER	VALUE
Supply Voltage(VS)	5.5V
Input Voltage Range (any input)	VEE 0.5 < VIN < VCC+ 0.5
DC Input Current (any input)	TBD
Power Dissipation (VCC = 5.25V)	TBD
Input ESD Voltage	TBD
Die Temperature	125°C
Storage Temperature Range	-40°C TS 150°C
Lead Temperature (soldering 10 seconds)	260°C

Description

The GS1522 is a monolithic bipolar integrated circuit designed to serialize SMPTE 274M and SMPTE 260M bit parallel digital signals.

GS1522 performs the following functions:
• Sync word mapping for 8-bit/10-bit operation.
• Parallel to Serial conversion of Luma & Chroma data
• Interleaving of Luma and Chroma data
• Data Scrambling (using the X⁹ +X⁴ +1 algorithm)
• Conversion of NRZ to NRZI serial data (using the (X+1) algorithm)
• Selectable DUAL or QUAD 75Ω Cable Driver outputs
• Lock Detect Output
• 1.485Gb/s or 1.485/1.001Gb/s operation

GS1522 requires a single 5V supply and typically consumes less than 1000mW of power while driving two 75Ω cables.

The GS1522 uses the GO1515 external VCO connected to the internal PLL circuitry to achieve ultra low noise PLL performance.


The GS1522 is a monolithic bipolar integrated circuit designed to serialize SMPTE 274M and SMPTE 260M bit parallel digital signals.

GS1522 performs the following functions:

• Sync word mapping for 8-bit/10-bit operation.
• Parallel to Serial conversion of Luma & Chroma data
• Interleaving of Luma and Chroma data
• Data Scrambling (using the X⁹ +X⁴ +1 algorithm)
• Conversion of NRZ to NRZI serial data (using the (X+1) algorithm)
• Selectable DUAL or QUAD 75ohm Cable Driver outputs
• Lock Detect Output
• 1.485Gb/s or 1.485/1.001Gb/s operation

GS1522 requires a single 5V supply and typically consumes less than 1000mW of power while driving two 75ohm cables.

The GS1522 uses the GO1515 external VCO connected to the internal PLL circuitry to achieve ultra low noise PLL performance.
