GPZ1275

Features: ·Meets MIL-STD-1275 Military Specification·10 & 30 kilowatts Peak Pulse Power per Line (tp=1ms)·Each Device 100% Tested·High Average (DC) Power Dissipation·Superior Heat Dissipation Capability·Small Package SizeApplication·Remote DC Power Supply, Base Station & Microwave Protecti...

product image

GPZ1275 Picture
See larger image
SeekIC No. : 004355223 Detail

GPZ1275: Features: ·Meets MIL-STD-1275 Military Specification·10 & 30 kilowatts Peak Pulse Power per Line (tp=1ms)·Each Device 100% Tested·High Average (DC) Power Dissipation·Superior Heat Dissipation Ca...

GPZ1275 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GPZ1275
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Meets MIL-STD-1275 Military Specification
·10 & 30 kilowatts Peak Pulse Power per Line (tp=1ms)
·Each Device 100% Tested
·High Average (DC) Power Dissipation
·Superior Heat Dissipation Capability
·Small Package Size


Application

·Remote DC Power Supply, Base Station & Microwave Protection
·MIL-STD-1275 Power Bus Protection
·Electric Drive Motors & Controls
·Mobile Electronics Operating in Harsh Environments


Pinout

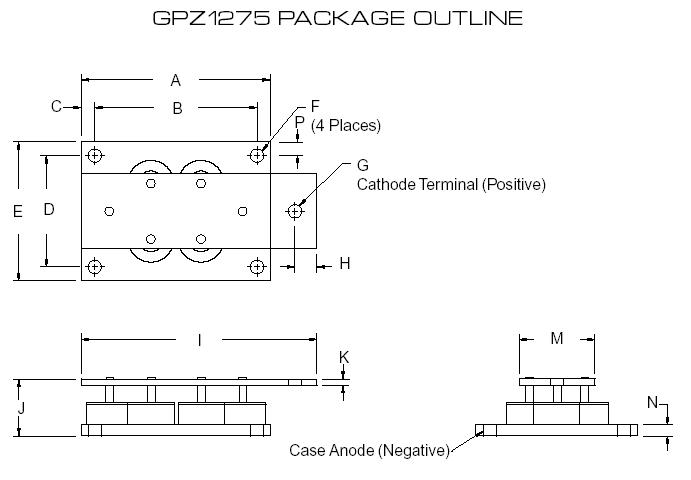

Connection Diagram


Specifications

PARAMETER SYMBOL VALUE UNITS
Peak Pulse Power (tp = 1ms) - See Figure 1 PPP 10 & 30 kilowatts
Operating Temperature TJ -55°C to 150°C °C
Storage Temperature TSTG -55°C to 150°C °C
Steady State Power Dissipation @ 25°C (derate 2.33W/°C) TA 350 Watts
