Features:

• 20K/12K bytes ROM(EPROM)
• 448 Bytes of On-Chip Data RAM (Including STACK Area)
• Minimum Instruction Execution time:
       - 1uS at 4MHz (2cycle NOP Instruction)
• One 8-bit Basic Interval Timer
• One 7-bit Watch Dog Timer
• Two 8-bit Timer/Counters
• 10-bit High Speed PWM Output
• One 8-bit Serial Peripheral Interface
• Two External Interrupt Ports
• One Programmable 6-bit Buzzer Driving Port
• 60 I/O Lines
       - 56 Programmable I/O pins (Included 30 high-voltage pins Max. 40V)
       - Three Input Only pins: 1 high-voltage pin
       - One Output Only pin
• Eight Interrupt Sources
       - Two External Sources (INT0, INT1)
       - Two Timer/Counter Sources (Timer0, Timer1)
       - Four Functional Sources (SPI,ADC,WDT,BIT)
• 12-Channel 8-bit On-Chip Analog to Digital Converter
• Oscillator:
       - Crystal
       - Ceramic Resonator
       - External R Oscillator
• Low Power Dissipation Modes
       - STOP mode
       - Wake-up Timer Mode
       - Standby Mode
       - Watch Mode
       - Sub-active Mode
• Operating Voltage: 2.7V ~ 5.5V (at 4.5MHz)
• Operating Frequency: 1MHz ~ 4.5MHz
• Sub-clock: 32.768KHz Crystal Oscillator
• Enhanced EMS Improvement Power Fail Processor (Noise Immunity Circuit)



Pinout

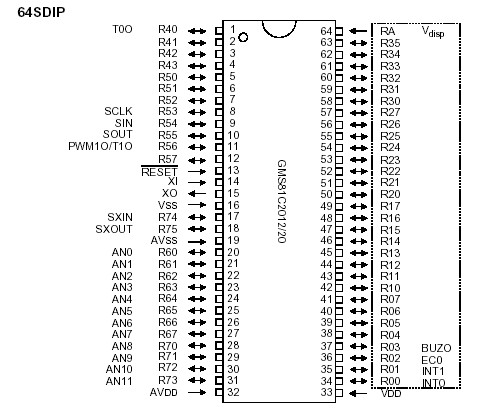

  Connection Diagram


Specifications

Supply voltage ............................................. -0.3 to +7.0 V
Storage Temperature .................................... -40 to +85
Voltage on Normal voltage pin
with respect to Ground (VSS)
................................................................-0.3 to VDD+0.3 V
Voltage on High voltage pin
with respect to Ground (VSS)
............................................................ ..-45V to VDD+0.3 V
Maximum current out of VSS pin ..............................150 mA
Maximum current into VDD pin ...................................80 mA
Maximum current sunk by (IOL per I/O Pin) ...............20 mA
Maximum output current sourced by (IOH per I/O Pin)
.................................................................................... 8 mA
Maximum current (IOL) ......................................... 100 mA
Maximum current (IOH)........................................... 50 mA



Description

The GMS81C2012 and GMS81C2020 are advanced CMOS 8-bit microcontroller with 12K/20K bytes of ROM. These are a powerful microcontroller which provides a highly flexible and cost effective solution to many VFD applications. GMS81C2020 provides the following standard features: 12K/20K bytes of ROM, 448 bytes of RAM, 8-bit timer/counter, 8-bit A/D converter, 10-bit High Speed PWM Output, Programmable Buzzer Driving Port, 8-bit Basic Interval Timer, 7-bit Watch dog Timer, Serial Peripheral Interface, on-chip oscillator and clock circuitry. They also come with high voltage I/O pins that can directly drive a VFD (Vacuum Fluorescent Display). In addition, the GMS81C2012 and GMS81C2020 support power saving modes to reduce power consumption.
