Product Details

Description

Features:

Fully static operation and Tri
state output
TTL compatible inputs and outputs
Low power consumption
Battery backup(L/LL-part)
Standard pin configuration

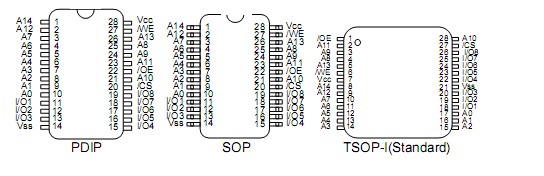

Pinout

Connection Diagram

Specifications

Symbol	Parameter		Rating	Unit
V_CC,V_IN,V_OUT	Power Supply, Input/Output Voltage		-0.3 to 4.6	V
T_A	Operating Temperature	GM76U256C	0 to 70
T_A	Operating Temperature	GM76U256CE	-25 to 85
T_STG	Storage Temperature		-65 to 150
P_D	Power Dissipation		1.0	W
I_OUT	Data Output Current		50	mA
T_SOLDER	Lead Soldering Temperature & Time		260 10	sec

Description

The GM76U256C is a high-speed, low power and 32,786 X 8-bits CMOS Static Random Access Memory fabricated using Hynix's high performance CMOS process technology. GM76U256C is suitable for use in low voltage operation and battery back -up application. This device has a data retention mode that guarantees data toremain valid at the minimum power supplyvoltage of 2.0 volt.
