Features:

• Operating Voltage Range: 2.5 to 5.5 V
• Operating Temperature Range:-40 to +75
• Operating Power Consumption:3.0mA@2.5V
• Maximum Operating Frequency: 60MHz@200mVp-p, VDD=2.5V
• 3 or 4 Pins Used for serial MCU Interface
• Power Saving Mode Controlled by MCU
• Lock Detect Signal
• On-Chip Reference Oscillator Supports External Crystals to 16.0 MHz
• Reference Frequency Counter Division Range: 16 to 4095
• Auxiliary Reference Frequency Counter Division Range: 16 to 16,383
• Transmit Counter Division Range:16 to 65,535
• Receive Counter Division Range: 16 to 65,53


Pinout

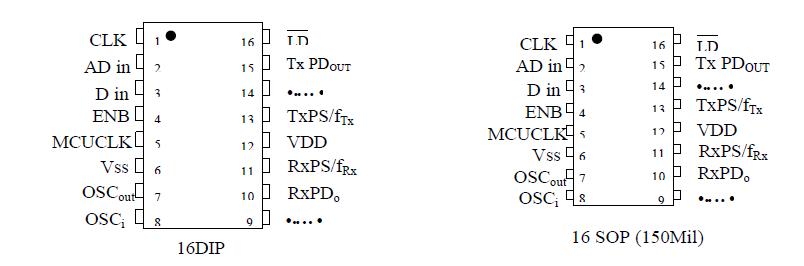

Connection Diagram


Specifications

Symbol Ranting Value Unit
VDD DC Supply Voltage -0.5 to +6.0 V
Vin Input Voltage, all Inputs -0.5 to VDD +0.5 V
Iin , Iout DC Current Drain Per Pin 10 mA
IDD , ISS DC Current Drain VDD or VSS Pins 30 mA
Tstg Storage Temperature Range -65 to + 150



Description

The GM6535 is a dual phase locked loop (PLL) frequency synthesizer especially designed for CT-1 cordless phone applicationsworldwide. Thisfrequency synthesizer is also for any products with frequency operation at 60 MHz or below.

The GM6535 features fully programmable receive, transmit, reference, and auxiliary reference counters accessed through an MCU serial interface, this feature allows this device to operate in any CT-1 cordless phone application.

The GM6535 consists of two independent phase detectors for transmit and receive loops. A common reference oscillator, driving two independent reference frequency counters, provides independent reference frequencies for transmit and receive loops.

The auxiliary reference counter GM6535 allows the user to select an additional reference frequency for receive and transmit loops if required.
