GM6486

Features: ·33 Output, 15mA Sink Capability·Current Generator Outputs (No External Resistros Required)·Continous Brightness Control·Serial Data Input-Output·External Load Input·Cascade operation capability·Wide supply voltage range·TTL compatibilityApplication·Microprocessor Displays·Industrial con...

product image

GM6486 Picture
See larger image
SeekIC No. : 004354140 Detail

GM6486: Features: ·33 Output, 15mA Sink Capability·Current Generator Outputs (No External Resistros Required)·Continous Brightness Control·Serial Data Input-Output·External Load Input·Cascade operation capa...

GM6486 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GM6486
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·33 Output, 15mA Sink Capability
·Current Generator Outputs (No External Resistros Required)
·Continous Brightness Control
·Serial Data Input-Output
·External Load Input
·Cascade operation capability
·Wide supply voltage range
·TTL compatibility


Application

·Microprocessor Displays
·Industrial control Indicator
·Relay Driver
·Instrumentation Readouts


Pinout

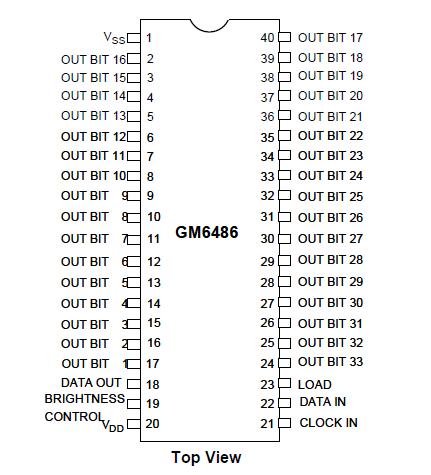

Connection Diagram


Specifications

SYMBOL PARAMETER RATINGS UNIT
VDD Supply Voltage -0.3 to 15 V
VIN Input Voltage -0.3 to 15 V
VO(off ) Off State Output Voltage 15 V
IO Output Sink Current 40 mA
Ptot Total Package Power Dissipation 1 (at 25 ) W
560 (at 85 ) mW
Tj Junction Temperature 150
Top Operating Temperature Range -25 to 85
Tstg Storage Temperature Range -65 to 150



Description

The GM6486 is a monolithic MOS integrated circuit produced with high voltage CMOS technology. It is available in a 40-pin dual in-lineplastic package. A sin-gle pin controls the LED display brightness by setting a reference current through a variable resistor connect-ed to VDD or to a separated supply of 13.2V maximum.
