GM317

Features: ·Output current up to 1.5A·Output Voltages 1.2V to 37V·Input Regulation typ. 0.01% per input·Output Regulation typ. 0.1%·Peak Output Current Constant over·Temperature Range of Regulator·Available in TO-220 and TO-263 Packages·Ripple Rejection Typically 80dB·Direct replacements for LM317P...

product image

GM317 Picture
See larger image
SeekIC No. : 004354073 Detail

GM317: Features: ·Output current up to 1.5A·Output Voltages 1.2V to 37V·Input Regulation typ. 0.01% per input·Output Regulation typ. 0.1%·Peak Output Current Constant over·Temperature Range of Regulator·Av...

GM317 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GM317
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Output current up to 1.5A
·Output Voltages 1.2V to 37V
·Input Regulation typ. 0.01% per input
·Output Regulation typ. 0.1%
·Peak Output Current Constant over
·Temperature Range of Regulator
·Available in TO-220 and TO-263 Packages
·Ripple Rejection Typically 80dB
·Direct replacements for LM317




Pinout

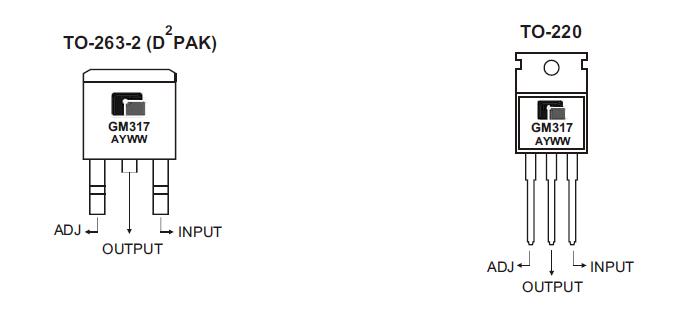

Connection Diagram




Specifications

PARAMETER VALUE UNIT
Input to Output Differential Voltage, VI - VO 40 V
Continuous Total Dissipation at 25°C free-air temperature 2 W
Continuous Total Dissipation at (or bellow) 25case temperature 15
Operating free-air, case, or virtual junction Temperature Range 0 to +125
Storage Temperature Range -65 to +150
Lead Temperature 1.6mm (1/16 inch) from case for 10 sec. 260





Description

The GM317 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, GM317 employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof.

The GM317 a wide variety of applications including local, application, and on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output. The GM317 can be used as a precise current regulator.
