GM2526

Features: `Compliant to USB Specifications`Two Independent Switches`Input from 3V to 5.5V`Min. Continuous Load Current 500mA per port`Max. ON-Resistance 140mW`Max. Short Circuit Current Limit 1.25A`Individual Open-Drain Fault Flag Pins`ON-State Supply Current 110A (typ.)`OFF-State Supply Current 0...

product image

GM2526 Picture
See larger image
SeekIC No. : 004354066 Detail

GM2526: Features: `Compliant to USB Specifications`Two Independent Switches`Input from 3V to 5.5V`Min. Continuous Load Current 500mA per port`Max. ON-Resistance 140mW`Max. Short Circuit Current Limit 1.25A`...

GM2526 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GM2526
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Compliant to USB Specifications
`Two Independent Switches
`Input from 3V to 5.5V
`Min. Continuous Load Current 500mA per port
`Max. ON-Resistance 140mW
`Max. Short Circuit Current Limit 1.25A
`Individual Open-Drain Fault Flag Pins
`ON-State Supply Current 110A (typ.)
`OFF-State Supply Current 0.75A (typ.)
`Thermal Shutdown
`Undervoltage Lockout (UVLO) Typically 2.4V
`1ms Turn-ON (soft-start) and Fast Turn-OFF
`Active-High or Active-Low Enable Versions


Application

USB Power Management
USB Host- and Self-Powered Hubs
USB Bus-Powered Hubs
Hot Plug-In Power Supplies
Battery-Charger Circuit


Pinout

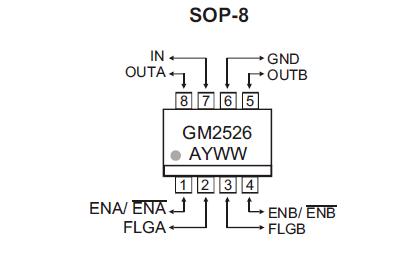

Connection Diagram


Specifications

PARAMETER SYMBOL VALUE UNIT
Supply Voltage VIN 6 V
Fault Flag Voltage VFLG 6 V
Output Voltage VOUT 6 V
Fault Flag Current IFLG 6 mA
Output Current IOUT Internally limited mA
Control Input VEN -0.3 to 12 V
Storage Temperature Range TS -65 to +150



Description

GM2526 is a dual high-side integrated power switch with independent enable and flag functions, designed for selfpowered and bus-powered Universal Serial Bus (USB) applications.GM2526 requires few external components.

Each of the two switch channels supply up to 500mA as required by USB downstream devices. Each switch's low on-resistance meets USB voltage drop requirements. Fault current is 750mA (typical). A flag output indicates fault conditions to the local USB controller. The soft-tart feature prevents the transient voltage drop on the upstream port that can occur when the switch is enabled in bus-powered applications. Thermal shutdown protection prevents switch failure from high-current loads. Undervoltage lockout (UVLO) hold GM2526 off unless there is a correct input voltage. GM2526 has 3.3V and 5V logic-compatible Enable inputs.

GM2526 is available in Active-High and Active-Low versions, and comes in 8-pin DIP and SOIC packages.
