GM1235PFV2-8.GN, US $ 6.91-6.91, GM1235PFV2-8.GN DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003443918 Detail

GM1235PFV2-8.GN: FAN 12VDC 35X10MM .5W 6.5CFM

GM1235PFV2-8.GN Data Sheet

US $ 6.91~6.91 / Piece | Get Latest Price

Part Number:: GM1235PFV2-8.GN
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$6.91

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

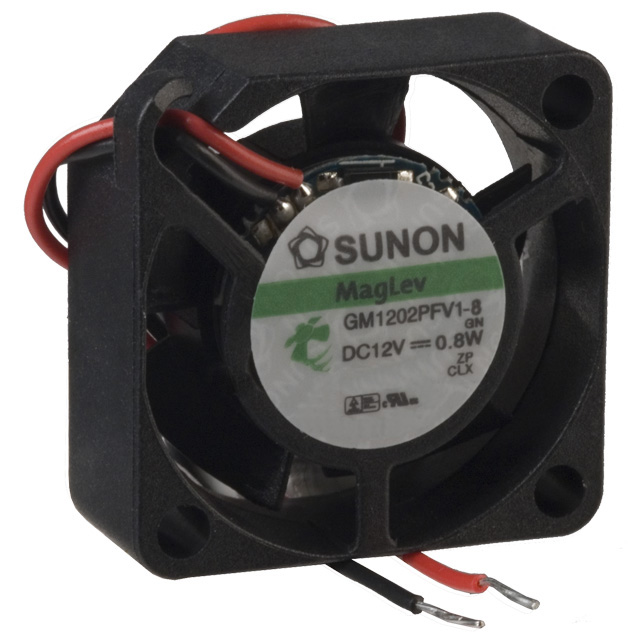

GM1202PFV1-8.GN evaluate
FAN 12VDC 25X10MM .8W 3.5CFM
GM1202PFV2-8.GN evaluate
FAN 12VDC 25X10MM .5W 3.0CFM
GM1203PFV1-8.GN evaluate
FAN 12VDC 30X10MM 1.0W 5.5CFM

Product Details

Quick Details

Series:	GM	Manufacturer:	Sunon Fans
Fan Type:	Tubeaxial	Size / Dimension:	Square - 35mm L x 35mm H x 10mm W
Voltage - Rated:	12VDC	Power (Watts):	0.50W
Features:	-	RPM:	7500 RPM
Noise:	22 dB(A)	Package / Case :	SOP-20
Static Pressure:	0.120 in H2O (29.9 Pa)	Air Flow:	6.5 CFM (0.184m³/min)
Termination:	2 Wire Leads	Bearing Type:	Vapo-Bearing?

Description

Manufacturer: Sunon Fans
Fan Type: Tubeaxial
Voltage - Rated: 12VDC
Features: -
Termination: 2 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Bearing Type: Vapo-Bearing?
Noise: 22 dB(A)
Size / Dimension: Square - 35mm L x 35mm H x 10mm W
RPM: 7500 RPM
Static Pressure: 0.120 in H2O (29.9 Pa)
Air Flow: 6.5 CFM (0.184m³/min)
Series: GM
Power (Watts): 0.50W

Parameters:

Technical/Catalog Information	GM1235PFV2-8.GN
Vendor	Sunon Fans
Category	Fans, Thermal Management
Voltage - Rated	12VDC
Power (Watts)	0.5W, 1/2W
Bearing Type	Vapo-Bearing?
Size / Dimension	Square - 35mm L x 35mm H x 10mm W
Air Flow	6.5 CFM
Features	-
Termination	2 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GM1235PFV2 8 GN GM1235PFV28GN 259 1392 ND 2591392ND 259-1392
