GM0502PFV1-8.F.GN: FAN 5VDC 25X10MM .6W 3.5CFM TAC

GM0502PFV1-8.F.GN Data Sheet

Get Latest Price

Part Number:: GM0502PFV1-8.F.GN
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

GM0501PDV1-8.GN evaluate
FAN 5VDC 20X8MM .9W 1.6CFM

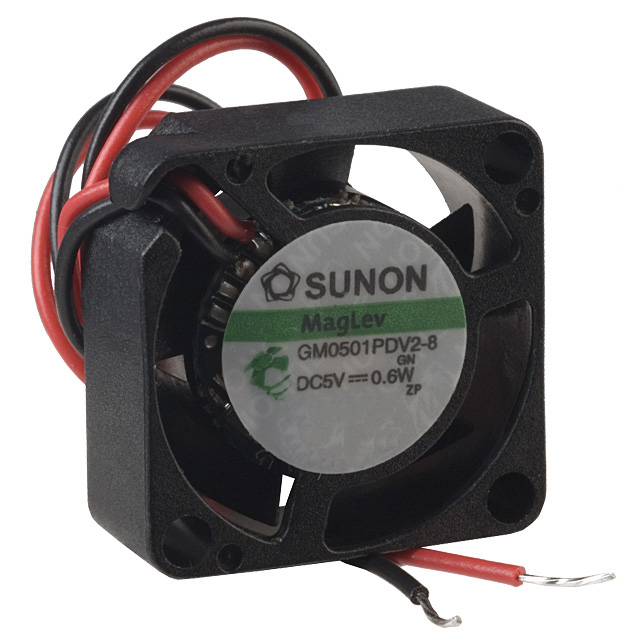

GM0501PDV2-8.GN evaluate
FAN 5VDC 20X8MM .6W 1.3CFM

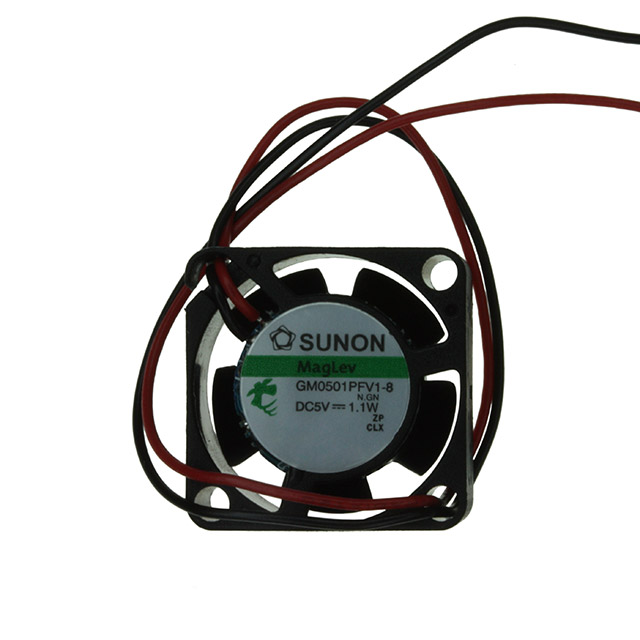

GM0501PFV1-8.N.GN evaluate
FAN 5VDC 20X10MM 1.1W 1.9CFM

Product Details

Quick Details

Series:	GM	Manufacturer:	Sunon Fans
Fan Type:	Tubeaxial	Size / Dimension:	Square - 25mm L x 25mm H x 10mm W
Voltage - Rated:	5VDC	Power (Watts):	0.60W
Features:	Speed Sensor (Tach)	RPM:	13000 RPM
Noise:	23 dB(A)	Static Pressure:	0.250 in H2O (62.3 Pa)
Package / Case :	SOP-20	Air Flow:	3.5 CFM (0.099m³/min)
Termination:	3 Wire Leads	Bearing Type:	Vapo-Bearing?

Description

Manufacturer: Sunon Fans
Fan Type: Tubeaxial
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Bearing Type: Vapo-Bearing?
Voltage - Rated: 5VDC
Features: Speed Sensor (Tach)
Termination: 3 Wire Leads
Power (Watts): 0.60W
Size / Dimension: Square - 25mm L x 25mm H x 10mm W
RPM: 13000 RPM
Noise: 23 dB(A)
Static Pressure: 0.250 in H2O (62.3 Pa)
Air Flow: 3.5 CFM (0.099m³/min)
Series: GM

Parameters:

Technical/Catalog Information	GM0502PFV1-8.F.GN
Vendor	Sunon Fans
Category	Fans, Thermal Management
Voltage - Rated	5VDC
Power (Watts)	0.6W
Bearing Type	Vapo-Bearing?
Size / Dimension	Square - 25mm L x 25mm H x 10mm W
Air Flow	3.5 CFM
Features	Speed Sensor (Tach)
Termination	3 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GM0502PFV1 8 F GN GM0502PFV18FGN 259 1324 ND 2591324ND 259-1324

Customers Who Bought This Item Also Bought

GM0501PFB3-8
US $$1.00 - 1.00 / Piece

Supply Ability:1000Day

View details

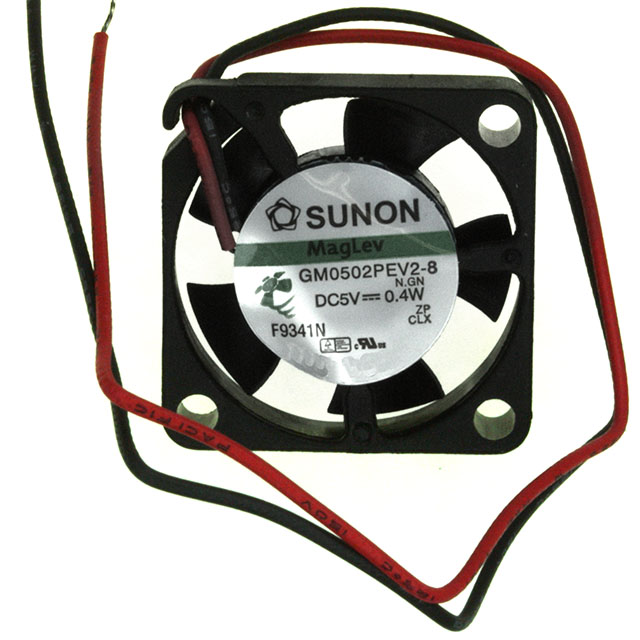

GM0502PEV2-8
