GL6850

Features: • Low current consumption.• Designed for telephone bell replacement.• Small size MINIDIP package.• Adjustable 2- frequency tone.• Built-in hysteresis prevents false triggering and rotary dial CHIRPS.• Alarms or other alerting devices.• External t...

product image

GL6850 Picture
See larger image
SeekIC No. : 004353758 Detail

GL6850: Features: • Low current consumption.• Designed for telephone bell replacement.• Small size MINIDIP package.• Adjustable 2- frequency tone.• Built-in hysteresis prevents...

GL6850 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GL6850
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low current consumption.
• Designed for telephone bell replacement.
• Small size MINIDIP package.
• Adjustable 2- frequency tone.
• Built-in hysteresis prevents false triggering and rotary dial CHIRPS.
• Alarms or other alerting devices.
• External triggering or ringer disable.
• Include ESD protection.


Pinout

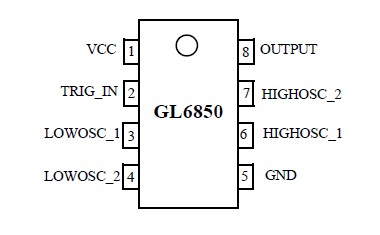

Connection Diagram


Specifications

CHARACTERISTICS
SYMBOL
VALUE
UNIT
Supply Voltage
V CC
30
V
Power Dissipation
Po
400
mW
Operating Temperature
Topr
-25 to 65

··

Storage Temperature
Tstg
-65 to 150
··



Description

The GL6850 tone ringer is a monolithic device, which incorporates two oscillators, and output amplifier and a power supply control circuit. The o scillator frequencies of GL6850 can be adjusted over a wide range by selection of external components. One oscillator, normally operated at a low frequency, causes the second oscillator to alternate between its nominal frequency and a related higher frequency. The resulting output is a distinct warbling tone. The output amplifier will drive either a transformer coupled loudspeaker or a piezo-ceramic transducer.

The GL6850 can be powered from a telephone line or a fixed d.c. supply. The power control circuit has builtin hysteresis to prevent false triggering and rotary dial chirps. The GL6850 can be triggered externally under logic control.
