GL640USB

Features: `Low-cost solution for full-speed USB device`Applications Printer, Scanner, PC Camera, External Storage Device, CD-ROM`IEEE 1284 interface supports bi-directional communication`On-chip EPP engine`On-chip 8-bit micro-controller`USB Specification Compliance- Conforms to USB 12Mbps Specifi...

product image

GL640USB Picture
See larger image
SeekIC No. : 004353748 Detail

GL640USB: Features: `Low-cost solution for full-speed USB device`Applications Printer, Scanner, PC Camera, External Storage Device, CD-ROM`IEEE 1284 interface supports bi-directional communication`On-chip EP...

GL640USB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GL640USB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low-cost solution for full-speed USB device
`Applications Printer, Scanner, PC Camera, External Storage Device, CD-ROM
`IEEE 1284 interface supports bi-directional communication
`On-chip EPP engine
`On-chip 8-bit micro-controller
`USB Specification Compliance
-  Conforms to USB 12Mbps Specification, Version 1.0
-  Supports 1 device address and 4 endpoints
`2 sets of 64-byte FIFO with dynamic allocation
-  a. 64-In/64-Out
-  b. 64-In0/64-In1 ping pong buffer
-  c. 64-Out0/64-Out1 ping pong buffer
`Integrated USB transceiver
`On-chip 3.3v regulator
`Improved output drivers with slew-rate control to reduce EMI
`12MHz external clock
`On-chip PLL to support 48MHz internal clock
`Internal power-on reset(POR)
`Supports suspend/normal mode power management
`Customized firmware/driver for scanner application
`The driver allows current Win98/Win95 OSR-2 printer drivers to print seamlessly to USB
`Fully plug & play compatible
`Single-chip solution in cost saving 40-pin SOJ(GL640USB) / 48-pin LQFP(GL640USB-A)
`Special pad-design to support EPP/USB dual-interface application

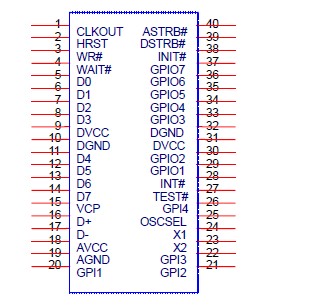

Pinout

Connection Diagram


Specifications

SYMBOL
Description
MIN
MAX
VCC
DC supply voltage
-0.5V
+7V
VI
DC input voltage
-0.5V
VCC+0.5V
V I/O
DC input voltage range for I/O
-0.5V
VCC+0.5V
VAI/O
DC input voltage for USB D+/D- pins
-0.5
VCC+0.5V
V I/OZ
DC voltage applied to outputs in High Z state
-0.5V
VCC+0.5V
VESD
static discharge voltage
4000V



Description

The GL640USB is a low-cost, single-chip embedded controller designed for connecting an IEEE 1284 parallel port peripheral to USB. GL640USB is suitable for applications where the IC is mounted on a PCB inside a product or stand-alone applications where the chip resides in a cable connecting a standard parallel port device to an USB-capable  omputer.

The GL640USB firmware/driver will allow peripheral vendors to easily migrate parallel port device to USB.
