SeekIC No. : 002845824 Detail

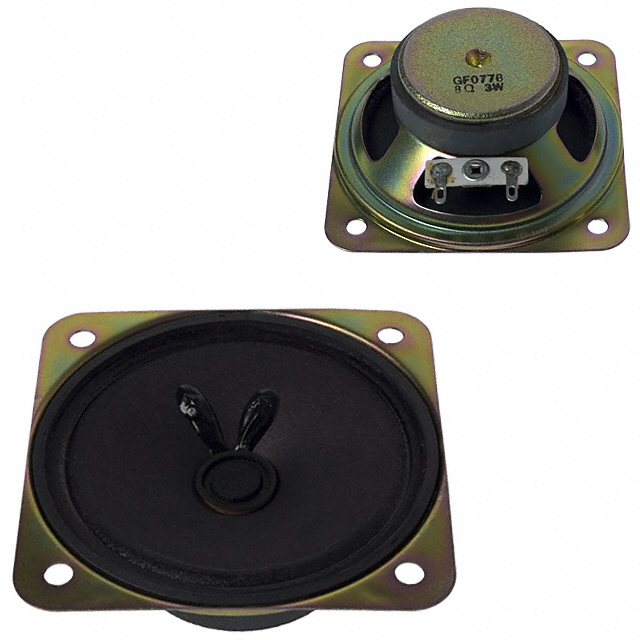

GF0778B: SPEAKER 8 OHM 3W 77MM SQUARE

GF0778B Data Sheet

US $ 1.77~4.04 / Piece | Get Latest Price

Part Number:: GF0778B
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$4.04
$3.34
$2.51
$2.09
$1.85
$1.77

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

GF0701 evaluate
US $1.45 - 1.45 / Piece

SPEAKER 8 OHM 0.5W 70MM ROUND
GF0701M evaluate
Specificationsdiameter: 70 mm/2.75 inchesdepth: 22 mmimpedance: 8Ωs.p. level: 88 dB/W ±3dBre...
GF0701TV evaluate
Specificationsdiameter: 70 mm/2.75 inchesdepth: 42 mmimpedance: 8Ωs.p. level: 90 dBresonance...

Product Details

Quick Details

Series:	GF	Manufacturer:	CUI Inc
Type:	Magnetic	Sensitivity :	- 70 dB
Frequency Range:	250Hz ~ 15kHz	Impedance:	8 Ohm
Sound Pressure Level:	95dB	Power - Rated:	3W
Power - Max:	5W	Height:	27.50mm
Size / Dimension:	77.00mm L x 77.00mm W	Shape:	Round, Square Frame
Termination:	Solder Eyelet(s)	Material - Cone:	Paper

Description

Manufacturer: CUI Inc
Type: Magnetic
Impedance: 8 Ohm
Sound Pressure Level: 95dB
Material - Cone: Paper
Series: GF
Material - Magnet: Ferrite
Termination: Solder Eyelet(s)
Shape: Round, Square Frame
Power - Rated: 3W
Power - Max: 5W
Size / Dimension: 77.00mm L x 77.00mm W
Frequency Range: 250Hz ~ 15kHz
Height: 27.50mm

Specifications

diameter: 77 mm/3 inches

depth: 31 mm

impedance: 8Ω

s.p. level: 95 dB

resonance frequency: 310 Hz

frequency range: fo-15K

nominal input: 3.0W

handling capacity (max input): 5.0W

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	GF0778B
Vendor	CUI Inc
Category	Audio Products
Frequency Range	250Hz ~ 15kHz
Impedance	8 Ohm
Type	Magnetic
Size / Dimension	77mm
Sound Pressure Level	95dB
Power - Rated	3W
Power - Max	5W
Termination	Solder Eyelet (s)
Material - Cone	Paper
Material - Magnet	Ferrite
Shape	Round, Square Frame
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GF0778B GF0778B GF0778 ND GF0778ND GF0778
