Features: ` Differential CML data and clock inputs with internal 50 load termination.` Selectable on chip retiming-FF.` Output modulation current pulse duty width adjustable (Compensates for LD emission delay)` Modulation/Bias current monitor output.` Modulation/Bias current shutdown input.` Singl...
GD16521: Features: ` Differential CML data and clock inputs with internal 50 load termination.` Selectable on chip retiming-FF.` Output modulation current pulse duty width adjustable (Compensates for LD emis...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol: |
Characteristic: |
Conditions: |
MIN.: |
TYP.: |
MAX.: |
UNIT: |
Vcc |
Power Supply |
-0.5 |
6 |
V | ||
VO |
Applied Voltage (All Outputs) |
-0.5 |
6 |
V | ||
VI |
Applied Voltage (All Inputs) |
-0.5 |
VCC + 0.5 |
V | ||
II CML IN |
Input Current |
-15 |
15 |
mA | ||
TO |
Operating Temperature |
Junction |
-40 |
+125 |
||
TS |
Storage Temperature |
-65 |
+150 |
|||
V I/O ESD |
Static Discharge (CML, LVTTL, ANL and PWR) |
Note 1, 2 |
500 |
V |
The GD16521 is a high performance low power 2.5 Gbit/s Laser Driver with optional on chip re-timing of data.
The GD16521 is designed to meet and exceed ITU-T STM-16 and SONET OC-48 fiberoptic communication systems requirements.
The GD16521 is designed to sink a Modulation Current into the IM pin and a Pre-Bias Current into the IB pin. The Modulation Current is adjustable up to 50 mA and the Pre-Bias Current is adjustable up to 100 mA. The device features two control loops for stabilizing the laser diode operating conditions. An automatic optical power control loop maintains a constant average optical power out of the laser diode, independent of changes in the threshold current of the laser diode. A modulation current control loop maintains a constant modulation current for the laser diode, or alternatively maintains a constant extinction ratio of the laser diode.
Re-timing of the data signal connected to the pins SDIP/SDIN of GD16521 is made by means of a DFF-clocked by an external clock signal at the data rate fed to the pins SCIP/ SCIN.
The GD16521 requires a single +3.3 V supply.
The circuit of GD16521 is available as:

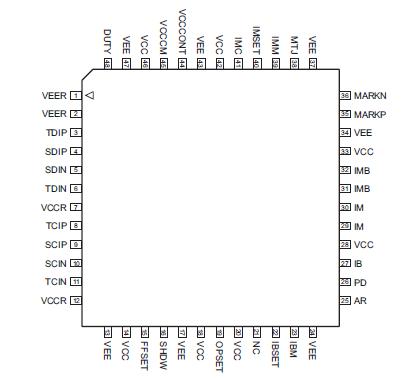

- 48 lead 7 × 7 mm TQFP power enhanced plastic package
- die.
