GC0351N, US $ 1.57-3.57, GC0351N DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002845950 Detail

GC0351N: SPEAKER 16X35MM 8 OHMS 1WATT

GC0351N Data Sheet

US $ 1.57~3.57 / Piece | Get Latest Price

Part Number:: GC0351N
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$3.57
$2.95
$2.21
$1.85
$1.64
$1.57

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/10/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

GC0301K evaluate
US $1.76 - 4 / Piece

SPEAKER 16X30MM 8 OHMS .5WATT

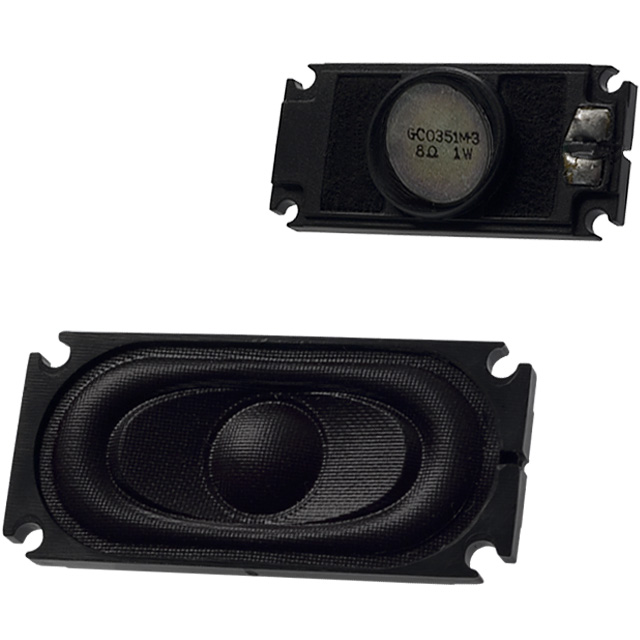

GC0351M-3 evaluate
US $1.57 - 3.57 / Piece

SPEAKER 16X35MM 8 OHM 1WATT
GC0351P evaluate
US $1.97 - 4.1 / Piece

SPEAKER 16X35MM 8 OHMS 1WATT

Product Details

Quick Details

Series:	GC	Manufacturer:	CUI Inc
Type:	Magnetic	Frequency Range:	650Hz ~ 20kHz
Impedance:	8 Ohm	Sound Pressure Level:	82dB
Power - Rated:	1W	Power - Max:	1.5W
Height:	4.40mm	Dimensions :	14 mm x 20 mm x 3.4 mm
Size / Dimension:	16.00mm L x 35.00mm W	Shape:	Oval, Rectangular Frame
Termination:	Solder Pads	Material - Cone:	-

Description

Manufacturer: CUI Inc
Type: Magnetic
Impedance: 8 Ohm
Termination: Solder Pads
Material - Magnet: -
Material - Cone: -
Height: 4.40mm
Sound Pressure Level: 82dB
Power - Rated: 1W
Power - Max: 1.5W
Series: GC
Frequency Range: 650Hz ~ 20kHz
Size / Dimension: 16.00mm L x 35.00mm W
Shape: Oval, Rectangular Frame

Specifications

diameter: 16x35 mm

depth: 4.2 mm

impedance: 8Ω

s.p. level: 82 dB

resonance frequency: 650 Hz

frequency range: fo-20K

nominal input: 1.0W

handling capacity (max input): 1.5W

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	GC0351N
Vendor	CUI Inc
Category	Audio Products
Frequency Range	650Hz ~ 20kHz
Impedance	8 Ohm
Type	Magnetic
Size / Dimension	16mm L x 35mm W x 4.2mm H
Sound Pressure Level	82dB
Power - Rated	1W
Power - Max	1.5W
Termination	Solder Pads
Material - Cone	-
Material - Magnet	-
Shape	Oval, Rectangular Frame
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GC0351N GC0351N
