Features: • HIGH PERFORMANCE E2CMOS® TECHNOLOGY - 3.5 ns Maximum Propagation Delay - Fmax = 250 MHz - 2.5 ns Maximum from Clock Input to Data Output - UltraMOS® Advanced CMOS Technology• 3.3V LOW VOLTAGE 16V8 ARCHITECTURE - JEDEC-Compatible 3.3V Interface Standard - 5V Compatib...
GAL16LV8: Features: • HIGH PERFORMANCE E2CMOS® TECHNOLOGY - 3.5 ns Maximum Propagation Delay - Fmax = 250 MHz - 2.5 ns Maximum from Clock Input to Data Output - UltraMOS® Advanced CMOS Technolog...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

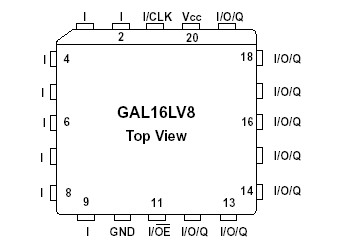

The GAL16LV8D, at 3.5 ns maximum propagation delay time, provides the highest speed performance available in the PLD market. The GAL16LV8C can interface with both 3.3V and 5V signal levels. The GAL16LV8 is manufactured using Lattice Semiconductor's advanced 3.3V E2CMOS process, which combines CMOS with Electrically Erasable (E2) floating gate technology. High speed erase times (<100ms) allow the devices to be reprogrammed quickly and efficiently.
The 3.3V GAL16LV8 uses the same industry standard 16V8 architecture as its 5V counterpart and supports all architectural features such as combinatorial or registered macrocell operations.
Unique test circuitry and reprogrammable cells of GAL16LV8 allow complete AC, DC, and functional testing during manufacture. As a result, Lattice Semiconductor delivers 100% field programmability and functionality of all GAL products. In addition, 100 erase/write cycles and data retention in excess of 20 years are specified.
