G218A

Features: · Auto-selectable multi-mode Single-Ended or LVD Termination· Meets SCSI-1, SCSI-2, SCSI-3 SPI Ultra (Fast-20), Ultra 2(SPI-2 LVD), Ultra160 standards.· Supports active negation· Current limit and thermal protection· Hot-Swap compatible (Single-Ended)· 5% tolerance on SE and LVD terminat...

product image

G218A Picture
See larger image
SeekIC No. : 004346169 Detail

G218A: Features: · Auto-selectable multi-mode Single-Ended or LVD Termination· Meets SCSI-1, SCSI-2, SCSI-3 SPI Ultra (Fast-20), Ultra 2(SPI-2 LVD), Ultra160 standards.· Supports active negation· Current l...

G218A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
G218A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Auto-selectable multi-mode Single-Ended or LVD Termination
·  Meets SCSI-1, SCSI-2, SCSI-3 SPI Ultra (Fast-20), Ultra 2(SPI-2 LVD), Ultra160 standards.
·  Supports active negation
·  Current limit and thermal protection
·  Hot-Swap compatible (Single-Ended)
·  5% tolerance on SE and LVD termination resistance
·  28 and 36 pin SSOP package
·  28 Pin SSOP: Pin Compatible with DS2119
·  36 Pin SSOP: Pin Compatible with DS2118, LX5241 and UCC5630


Application

· Server and workstation
· High-end PC
· Industrial PC
· Disk Array (RAID)
· SCSI cable


Pinout

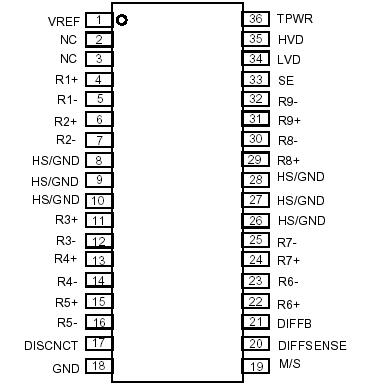

Connection Diagram


Description

The G218A Multi-mode LVD/SE SCSI terminator provides a smooth transition into the next generation of the SCSI Parallel Interface (SPI-2). It automatically senses the bus, via DIFFSENS, and switches the termination to either single-ended (SE) or low voltage differential (LVD) SCSI, dependent on which type of devices are connected to the bus. If the G218A detects a HVD SCSI device, it switches to a high impedance state. For a 16-bit Wide SCSI bus to be operational, three G218A terminators are needed.

The Multi-mode terminator contains all functions required to terminate and auto detect and switch modes for SCSI parallel Interface (SPI-2) bus architectures. For the SE termination, one regulator and nine precision 110ohm resistors are used. For the LVD termination, the G218A integrates two regulated supplies with nine precision resistor strings.
