FX529

Features:

PAA 1382 and General Purpose Trunked Radio Applications
Meets ETSI I-ETS 300 230 Binary Signalling Specification
Full-Duplex 1200 Baud Operation
High Intelligence
Error Checking in Receive
Frame SYNC/SYNT Detection
Preamble Generation
µProcessor Compatible Interface
Carrier Detection On-Chip
General Purpose Timer
Error Check Word Generation

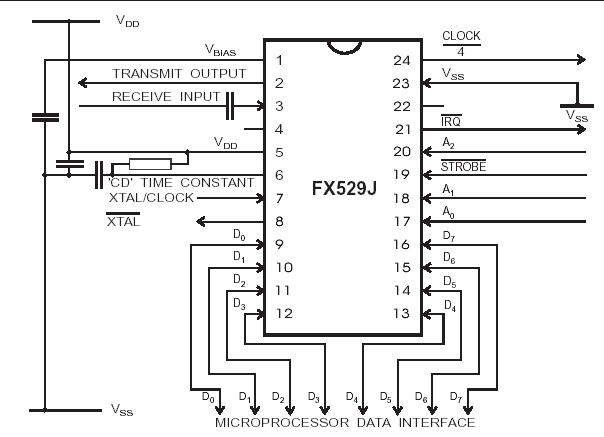

Pinout




Description

The FX529 is a single-chip CMOS 1200 baud FFSK Modem, designed primarily for use in trunked radio systems but may also be employed in other general purpose radio or line data communication applications.

FX529 conforms to both the PAA 1382 French trunked radio, and the proposed ETSII-ETS 300 230 "Binary Interchange of Information and Signalling" specifications.

The FX529 is full duplex at 1200 baud and includes an 8-bit parallel microprocessor interface and a programmable timer which may be set for interrupt periods of between 8 and 120 bits.

Preamble data and an error-check word of FX529 are automatically generated in the transmit mode.

Error checking is performed and the 16-bit SYNC ("1011010000110011") or SYNT ("0100101111001100") word detected in the receive mode.

An on-chip Xtal/clock generator requiring an external 4.032MHz Xtal or clock input provides all microcircuit filter sampling clocks and modem timings whilst also supplying a "Clock " 4" output (1.008MHz).

Pin and function of FX529 compatible with the FX429, the FX429 data sheet should be consulted when using this device

The FX529, which has a powersaving facility, requires a single 5-volt power supply and is available in both cerdip DIL and plastic SMD packages.
