FX2BA-100SA-1.27R, US $ 3.11-5.39 , Hirose Connector, FX2BA-100SA-1.27R DataSheet download, circuit diagram from SeekIC.com

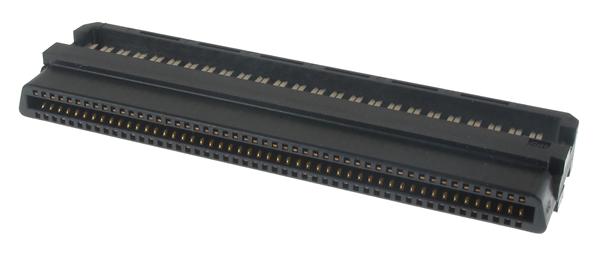

See larger image

SeekIC No. : 002144560 Detail

FX2BA-100SA-1.27R: Board to Board / Mezzanine Connectors IDC SKT 100P 1.27mm IDT RA Cable Mount

FX2BA-100SA-1.27R Data Sheet

US $ 3.11~5.39 / Piece | Get Latest Price

Part Number:: FX2BA-100SA-1.27R
Mfg:: Hirose Connector
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$5.39
$4.44
$3.74
$3.11

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

FX2B evaluate
DescriptionFX2B Half pitch, Ribbon cable IDC connection
FX2B(A)-GPA evaluate
US $2262 - 2262 / Piece

Board to Board / Mezzanine Connectors Guide Plate FX2 Series
FX2B-100P-1.27DS(71) evaluate
US $2.9 - 4.37 / Piece

Board to Board / Mezzanine Connectors 100P R/A HEADER T/H BOARD MNT LK CON

Product Details

Quick Details

Series :	FX2	Product Type :	Receptacles
Pitch :	1.27 mm	Mounting Style :	Free Hanging
Mounting Angle :	Straight	Number of Positions / Contacts :	100
Number of Rows :	2	Housing Material :	Polybutylene Terephthalate/Polyamide
Contact Material :	Phosphor Bronze	Contact Plating :	Gold
Voltage Rating :	125 V	Current Rating :	0.5 A

Description

Stack Height :
Product Type : Receptacles
Number of Rows : 2
Contact Material : Phosphor Bronze
Contact Plating : Gold
Current Rating : 0.5 A
Pitch : 1.27 mm
Mounting Angle : Straight
Number of Positions / Contacts : 100
Voltage Rating : 125 V
Series : FX2
Housing Material : Polybutylene Terephthalate/Polyamide
Mounting Style : Free Hanging

Parameters:

Technical/Catalog Information	FX2BA-100SA-1.27R
Vendor	Hirose Electric Co Ltd
Category	Connectors
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Pitch	0.050" (1.27mm)
Row Spacing	-
Packaging	Bulk
Fastening Type	-
Contact Finish Thickness	-
Number of Positions	100
Wire Type	Ribbon Cable
Contact Type	Female Socket
Wire Gauge	28 AWG
Cable Termination	IDC
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FX2BA 100SA 1 27R FX2BA100SA127R H4355 ND H4355ND H4355
