FT18

Features: • 2/3-inch optical format• 1M active pixels (1024H x 1024V)• Progressive scan• Excellent anti-blooming• Variable electronic shuttering• Square pixel structure• Hor. and Vert. binning• 100% optical fill factor• High dynamic range (>...

product image

FT18 Picture
See larger image
SeekIC No. : 004344966 Detail

FT18: Features: • 2/3-inch optical format• 1M active pixels (1024H x 1024V)• Progressive scan• Excellent anti-blooming• Variable electronic shuttering• Square pixel str...

FT18 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FT18
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2/3-inch optical format
• 1M active pixels (1024H x 1024V)
• Progressive scan
• Excellent anti-blooming
• Variable electronic shuttering
• Square pixel structure
• Hor. and Vert. binning
• 100% optical fill factor
• High dynamic range (>60dB)
• High sensitivity
• Low dark current and fixed pattern noise
• Low read-out noise
• Data rate up to 40 MHz
• Frame rate up to 30 Hz
• Mirrored read-out option

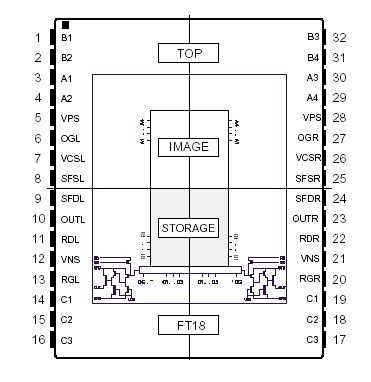

Pinout

Connection Diagram


Specifications

Absolute Maximum Ratings Min. Max. Unit
GENERAL:
storage temperature
ambient temperature during operation
voltage between any two gates
DC current through any clock (absolute value)
OUT current (no short circuit protections)
-55
-40
-20
-0.2
0
+80
+60
+20
+0.2
6
°C
°C
V
µA
mA
VOLTAGES IN RELATION TO VNS:
VPS, SFS
SFD
RD
All other pins
-30
-8
-15
-32
+0.5
+8
+0.5
+0.5
V
V
V
V
VOLTAGES IN RELATION TO VPS:
VNS
SFD, RD
SFS
All other pins
-0.5
+0
-8
-20
+30
+30
+8
+20
V
V
V
V



Description

The FT18 is a monochrome progressive-scan frame-transfer image sensor offering 1K x 1K pixels at 30 frames per second through a single output buffer. The combination of high speed and a high linear dynamic range (>10 true bits at room temperature without cooling) makes this device the perfect solution for high-end real time medical X-ray, scientific and industrial applications. A second output of FT18 can be used for mirrored images. The device structure is shown in figure 1.
