Product Details

Description



Features:

· 4Ω switch connection between two ports
· Voltage level shifting
· Minimal propagation delay through the switch
· Low lCC
· Zero bounce in flow-through mode
· Control inputs compatible with TTL level
· Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)

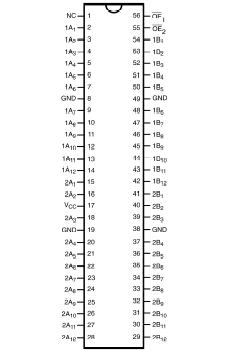

Pinout

Connection Diagram


Specifications

Supply Voltage (VCC) ................................................−0.5V to +7.0V
DC Switch Voltage (VS) (Note 3)............................... −0.5V to +7.0V
DC Input Control Pin Voltage (VIN)(Note 4).............. −0.5V to +7.0V
DC Input Diode Current (lIK) VIN < 0V.................................. −50 mA
DC Output (IOUT).................................................................. 128 mA
DC VCC/GND Current (ICC/IGND) ...................................+/− 100 mA
Storage Temperature Range (TSTG)........................ −65 to +150
Power Supply Operating (VCC)...................................... 4.5V to 5.5V
Input Voltage (VIN)............................................................0V to 5.5V
Output Voltage (VOUT)..................................................... 0V to 5.5V
Input Rise and Fall Time (tr, tf)
Switch Control Input................................................ 0 ns/V to 5 ns/V
Switch I/O 0 ns/V to DC
Free Air Operating Temperature (TA) .........................-40 to +85

Note 2: The "Absolute Maximum Ratings" are those values beyond which the safety of the device cannot
             be guaranteed. The device should not be operated at these limits. The parametric values defined in
             the Electrical Characteristics tables are not guaranteed at the absolute maximum rating. The
            "Recommended Operating Conditions" table will define the conditions for actual device operation.
Note 3: VS is the voltage observed/applied at either A or B Ports across the switch.
Note 4: The input and output negative voltage ratings may be exceeded if the input and output diode current
             ratings are observed.
Note 5: Unused control inputs must be held HIGH or LOW. They may not float.


Description

The Fairchild Switch FSTD16211 provides 24-bits of highspeed CMOS TTL-compatible bus switching. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. A diode to VCC has been integrated into the circuit to allow for level shifting between 5V inputs and 3.3V outputs.

The FSTD16211 is organized as a 12-bit or 24-bit bus switch. When OE1 is LOW, the switch is ON and Port 1A is connected
to Port 1B. When OE2 is LOW, Port 2A is connected to Port 2B. When OE1/2 is HIGH, a high impedance state exists between the A and B Ports.
