FST34170

Features:

• Slower Output Enable times prevent signal disruption
• 4Ω switch connection between two ports.
• Minimal propagation delay through the switch.
• Low l_CC.
• Zero bounce in flow-through mode.
• Control inputs compatible with TTL level.
• See Applications Note AN-5008 for details

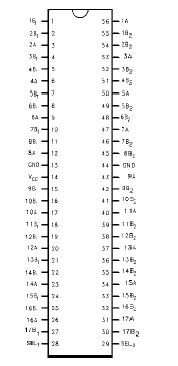

Pinout




Specifications

Supply Voltage (V_CC) ...............................................0.5V to +7.0V
DC Switch Voltage (V_S) (Note 2) ............................−0.5V to +7.0V
DC Input Voltage (V_IN) (Note 3)............................. −0.5V to +7.0V
DC Input Diode Current (l_IK) V_IN < 0V ................................−50 mA
DC Output (I_OUT) Current ..................................................128 mA
DC V_CC/GND Current (I_CC/I_GND) ......................................±100 mA
Storage Temperature Range (T_STG)................ −65°C to +150 °C


Description

The Fairchild Switch FST34170 is a 17-bit to 34-bit highspeed CMOS TTL-compatible multiplexer/demultiplexer bus switch. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.

The FST34170 can be used in applications where two buses need to be addressed simultaneously. The FST34170 is designed so that the A Port demultiplexes into B1 or B2 or both.

Two select (SEL₁, SEL₂) inputs provide switch enable control.
