FST16292

Features: • 4Ω switch connection between two ports.• Minimal propagation delay through the switch.• Low lCC.• Zero bounce in flow-through mode.• Control inputs compatible with TTL level.• Internal 500Ω pull-down resistor on A2 port.PinoutSpecificatio...

product image

FST16292 Picture
See larger image
SeekIC No. : 004344794 Detail

FST16292: Features: • 4Ω switch connection between two ports.• Minimal propagation delay through the switch.• Low lCC.• Zero bounce in flow-through mode.• Control inputs co...

FST16292 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FST16292
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4Ω switch connection between two ports.
• Minimal propagation delay through the switch.
• Low lCC.
• Zero bounce in flow-through mode.
• Control inputs compatible with TTL level.
• Internal 500Ω pull-down resistor on A2 port.


Pinout

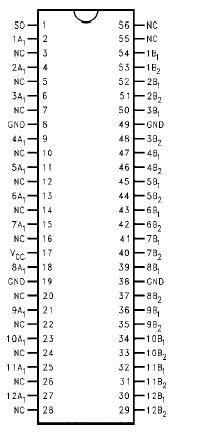

Connection Diagram


Specifications

Supply Voltage (VCC) ..................................................−0.5V to +7.0V
DC Switch Voltage (VS) ...............................................−0.5V to +7.0V
DC Input Voltage (VIN) (Note 2) .................................−0.5V to +7.0V
DC Input Diode Current (lIK) VIN<0V .......................................−50mA
DC Output (IOUT) Sink Current ................................................128mA
DC VCC/GND Current (ICC/IGND) ........................................+/− 100mA
Storage Temperature Range (TSTG) .....................−65°C to +150 °C


Description

The Fairchild Switch FST16292 provides twelve 2:1 highspeed CMOS TTL-compatible multiplexer/demultiplexer bus switches. The low on resistance of the FST16292 allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.The select pin connects the A Port to the selected B Port output. The A2 Ports are not externally connected, thus have a 500Ω pull-down resistor to ground.
