Product Details

Description



Features:

• Low ON-resistance.
• Ultrahigh-speed switching.
• 2.5V drive.

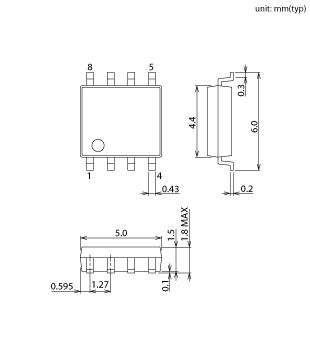

Pinout






Specifications

Parameter Symbol Conditions Ratings Unit
Drain-to-Source Voltage VDSS -20 V
Gate-to-Source Voltage VGSS ±10 V
Drain Current (DC) ID -4 A
Drain Current (Pulse) IDP PW10s, duty cycle1% -48 A
Allowable Power Dissipation PD Mounted on a ceramic board (1200mm2*0.8mm) 1.8 W
Channel Temperature Tch 150
Storage Temperature Tstg --55 to +150


Absolute maximum ratings
VDSS [V] 20
VGSS [V] 10
ID [A] 4
PD [W] 1.8
When mounted on ceramic substrate (1200mm²*0.8mm)
Electrical characteristics
RDS(on) typ []
VGS=4V
ID [A]=4		 0.06
RDS(on) typ []
VGS=2.5V
ID [A]=2		 0.078
VGS(off) min [V] 0.4
VGS(off) max [V] 1.4
|yfs| typ [S] 9
Ciss typ [pF] 1000
Qg typ [nC] 23
f [kHz] 300
