FSES0765RG

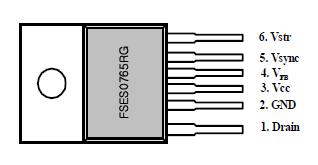

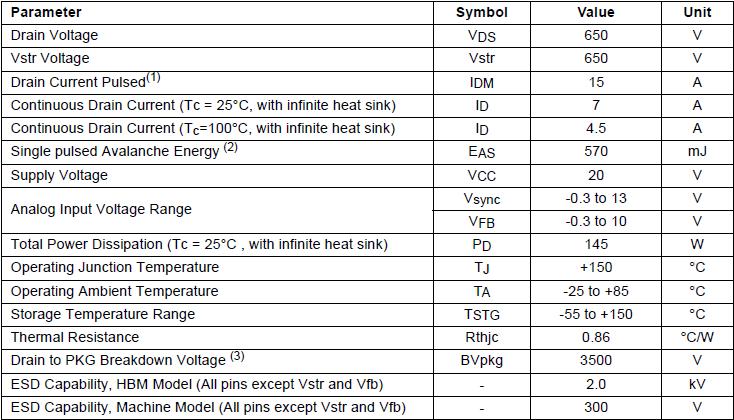

Notes:
1. Repetitive rating: Pulse width limited by maximum junction temperature
2. Lm=21mH, Vdd=50V, Rg=25, starting Tj=25°C
3. 60Hz AC

FSES0765RG is a Fairchild Power Switch (FPS) specially designed for off-line SMPS of CRT monitors with minimal external components. FSES0765RG combines a current mode PWM controller with a high voltage power SenseFET in a single package. The PWM controller features an integrated oscillator to be synchronized with the external sync signal, under voltage lockout, optimized gate driver and temperature-compensated precise current sources for the loop compensation. This device also includes various fault protection circuits such as over voltage protection, over load protection, abnormal over current protection and over temperature protection. Compared with discrete MOSFET and PWM controller solutions, FPS can reduce total cost,component count, size and weight while simultaneously  increasing efficiency, productivity and system reliability. FSES0765RG is well suited for cost effective CRT-monitor power supplies.
