FSDH321

Power Switch ICs - Power Distribution FPS for DVDP/STB

product image

FSDH321 Picture
SeekIC No. : 00630494 Detail

FSDH321: Power Switch ICs - Power Distribution FPS for DVDP/STB

floor Price/Ceiling Price

Part Number:
FSDH321
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Outputs : 1 On Resistance (Max) : 14 Ohms
Supply Current (Max) : 3 mA Maximum Operating Temperature : + 85 C
Mounting Style : Through Hole Package / Case : DIP-8

Description

On Time (Max) :
Off Time (Max) :
Operating Supply Voltage :
Maximum Operating Temperature : + 85 C
Number of Outputs : 1
Mounting Style : Through Hole
Package / Case : DIP-8
Supply Current (Max) : 3 mA
On Resistance (Max) : 14 Ohms


Features:

• Internal Avalanche Rugged Sense FET
• Consumes only 0.65W at 240VAC & 0.3W load with Advanced Burst-Mode Operation
• Frequency Modulation for EMI Reduction
• Precision Fixed Operating Frequency
• Internal Start-up Circuit
• Pulse-by-Pulse Current Limiting
• Abnormal Over Current Protection (AOCP)
• Over Voltage Protection (OVP)
• Over Load Protection (OLP)
• Internal Thermal Shutdown Function (TSD)
• Auto-Restart Mode
• Under Voltage Lockout (UVLO)
• Low Operating Current (max 3mA)
• Adjustable Peak Current Limit
• Built-in Soft Start



Application

• SMPS for STB, Low cost DVD Player
• Auxiliary Power for PC
• Adapter & Charger

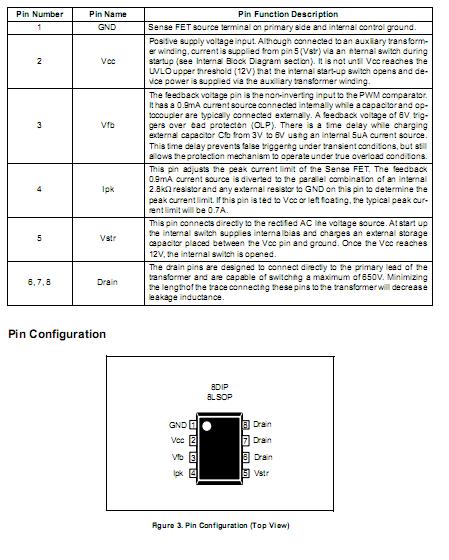

Pinout

  Connection Diagram


Specifications

Characteristic Symbol Value Unit
Drain Pin Voltage) VDRAIN 650 V
Vstr Pin Voltage VSTR 650 V
Drain Current Pulsed VDG 650 V
Gate-Source Voltage VGS ±20 V
Drain Current Pulsed(1) IDM 1.5 A
Continuous Drain Current (Tc=25) ID 0.7 A
Continuous Drain Current (Tc=100)
ID 0.32 A
Single Pulsed Avalanche Energy(2) EAS 10 mJ
Supply Voltage VCC 20 V
Feedback Voltage Range VFB -0.3 to VCC V
Total Power Dissipation PD
1.40 °C
Operating Junction Temperature TJ Internally limited °C
Operating Ambient Temperature TA -25 to +85 °C
Storage Temperature TSTG -55 to +150 °C



Description

Each product in the FSDx321 (x for H, L) family consists of an integrated Pulse Width Modulator (PWM) and Sense FET, and is specifically designed for high performance off- line Switch Mode Power Supplies (SMPS) with minimal external components. FSDx321 are integrated high voltage power switching regulators which combine an avalancherugged Sense FET with a current mode PWM control block.The integrated PWM controller features include: a fixed oscillator with frequency modulation for reduced EMI, Under Voltage Lock Out (UVLO) protection, Leading Edge Blanking (LEB), an optimized gate turn-on/turn-off driver, Thermal Shut Down (TSD) protection, Abnormal Over Current Protection (AOCP) and temperature compensated precision current sources for loop compensation and fault protection circuitry. When compared to a discrete MOSFET and controller or RCC switching converter solution, the FSDx321 devices reduce total component count, design size, weight while increasing efficiency, productivity and system reliability. Both devices provide a basic platform that is well suited for the design of cost-effective flyback converters.




Parameters:

Technical/Catalog InformationFSDH321
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Packaging-
Package / Case8-DIP
Power (Watts)17W
Voltage - Input9 ~ 20 V
Voltage - Output650V
Frequency Range90 ~ 110kHz
Operating Temperature25°C ~ 85°C
Output IsolationIsolated
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FSDH321
FSDH321
