FSD210

On Time (Max) :
Off Time (Max) :
Operating Supply Voltage :
Maximum Operating Temperature : + 85 C
Number of Outputs : 1
Mounting Style : Through Hole
On Resistance (Max) : 28 Ohms
Supply Current (Max) : 0.7 mA
Package / Case : DIP-7


Features:

• Single Chip 700V Sense FET Power Switch
• Precision Fixed Operating Frequency (134kHz)
• Advanced Burst-Mode operation Consumes under 0.1Wat 265Vac and no load (FSD210 only)
• Internal Start-up Switch and Soft Start
• Under Voltage Lock Out (UVLO) with Hysteresis
• Pulse by Pulse Current Limit
• Over Load Protection (OLP)
• Internal Thermal Shutdown Function (TSD)
• Auto-Restart Mode
• Frequency Modulation for EMI
• FSD200 does not require an auxiliary bias winding


Application

• Charger & Adaptor for Mobile Phone, PDA & MP3
• Auxiliary Power for White Goods, PC, C-TV & Monitor

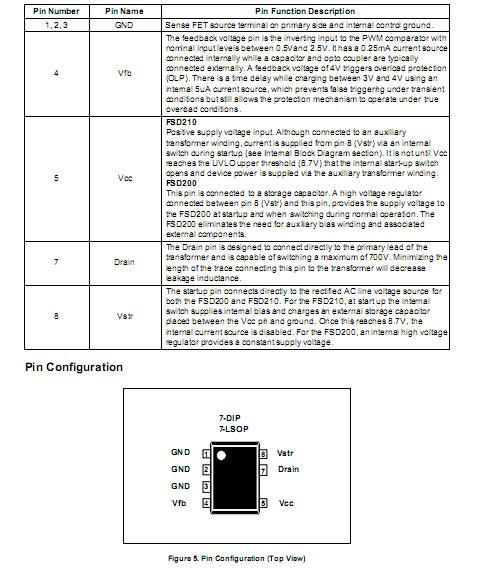

Pinout




Specifications

Parameter	Symbol	Value	Unit
Maximum Supply Voltage (FSD200	VCC,MAX	10	V
Maximum Supply Voltage (FSD210)	VCC,MAX	20	V
Input Voltage Range	VFB	−0.3 to VSTOP	V
Operating Junction Temperature.	TJ	+150	°C
Operating Ambient Temperature	TA	−25 to +85	°C
Storage Temperature Range	TSTG	−55 to +150	°C

Description

The FSD200 and FSD210 are integrated Pulse Width Modu-lators (PWM) and Sense FETs specially designed for high performance off-line Switch Mode Power Supplies (SMPS) with minimal externalcomponents. Both devices are mono- lithic high voltage power switching regulators which com- bine an LDMOS Sense FET with a voltage mode PWM control block. The integrated PWM controller features of FSD200 and FSD210 in clude: a fixed oscillator with frequency modulation for reduced EMI, Under Voltage Lock Out (UVLO) protection, Leading Edge Blanking (LEB), optimized gate turn-on/turn- off driver, thermal shut down protection (TSD), temperature compensated precision current sources for loop compensa- tion and fault protection circuitry. When compared to a discrete MOSFET and controller or RCC switching converter solution, the FSD200 and FSD210 reduce total component count, design size, weight and at the same time increase effi- ciency, productivity, and system reliability. The FSD200 eliminates the need for an auxiliary bias winding at a small cost of increased supply power. Both devices are a basic platform well suited for cost effective designs of flyback converters.

Parameters:

Technical/Catalog Information	FSD210
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Packaging	-
Package / Case	7-DIP
Power (Watts)	7W
Voltage - Input	7.4~ 20 V
Voltage - Output	700V
Frequency Range	126 ~ 142kHz
Operating Temperature	25°C ~ 150°C
Output Isolation	Isolated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSD210 FSD210
