FSBB30CH60

Motor / Motion / Ignition Controllers & Drivers 600V 30A SMART

product image

FSBB30CH60 Picture
See larger image
SeekIC No. : 00533443 Detail

FSBB30CH60: Motor / Motion / Ignition Controllers & Drivers 600V 30A SMART

FSBB30CH60 Data Sheet

floor Price/Ceiling Price

US $ 13.91~17.15 / Piece | Get Latest Price
Part Number:
FSBB30CH60
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~36
  • 36~100
  • 100~250
  • 250~500
  • Unit Price
  • $17.15
  • $15.93
  • $14.62
  • $13.91
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Mounting Style : SMD/SMT Package / Case : SPM27-EA
Packaging : Tube

Description

Product :
Type :
Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Package / Case : SPM27-EA


Features:

UL Certified No.E209204(SPM27-EA package)
Very low thermal resistance due to using DBC
600V-30A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Isolation rating of 2500Vrms/min.




Application

AC 100V ~ 253V three-phase inverter drive for small power ac motor drives
Home appliances applications like air conditioner and wash-ing machine.




Pinout

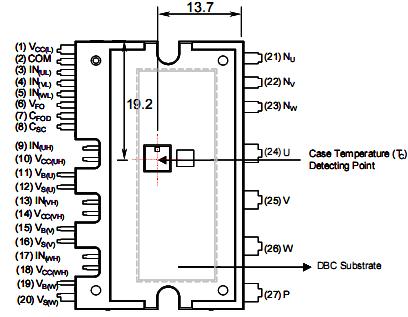

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FSBB30CH60 Full Production RoHS Compliant $26.20 SPM27-EA 27 RAIL TBD Line 1: $Y (Fairchild logo)
Line 2: FSBB30CH60 Line 3: &H&E&E&E&E&3 Line 4: AN&H&3
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FSBB30CH60 is available. Click here for more information .


Symbol Parameter Conditions Rating Unit
VPN
 Supply Voltage Applied between P- NU ,NV ,NW
 450 V
VPN(Surge)
 Supply Voltage (Surge) Applied between P- NU ,NV ,NW
 500 V
VCES
Collector-emitter Voltage		 600 V
±IC Each IGBT Collector Current TC=25 30 A
±ICP Each IGBT Collector Current (Peak) TC=25 Under 1ms Pulse Widt 45 A
PC
 Collector Dissipation TC=25 per One Chip 103 W
TJ
Operating Junction Temperature		 (Note 1) -20 ~ 125





Description

FSBB30CH60 is an advanced smart power module (SPM™) that Fairchildhas newly developed and designed to provide very compactand high performance ac motor drives mainly targeting lowpowerinverter-driven application like air conditioner and washingmachine. FSBB30CH60 combines optimized circuit protection and drivematched to low-loss IGBTs. System reliability is furtherenhanced by the integrated under-voltage lock-out and shortcircuitprotection. The high speed built-in HVIC of FSBB30CH60 provides optocoupler-less single-supply IGBT gate driving capability that furtherreduce the overall size of the inverter system design. Eachphase current of inverter can be monitored separately due tothe divided negative dc terminals






Parameters:

Technical/Catalog InformationFSBB30CH60
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
ApplicationsAC Motor Driver, 3 Phase
Number of Outputs1
Voltage - Supply13.5 V ~ 16.5 V
Voltage - Load300 V ~ 400 V
Current - Output30A
Operating Temperature-20°C ~ 100°C
Package / CaseSPM27EA
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FSBB30CH60
FSBB30CH60
