Motor / Motion / Ignition Controllers & Drivers 250V/8A SPM5
FSB50825US: Motor / Motion / Ignition Controllers & Drivers 250V/8A SPM5
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $2.61 - 3.84 / Piece
Motor / Motion / Ignition Controllers & Drivers Smart Power Module
Product : | Fan / Motor Controllers / Drivers | Type : | Smart Power Modules |
Operating Supply Voltage : | 13.5 V to 16.5 V | Supply Current : | 160 uA |
Mounting Style : | SMD/SMT | Package / Case : | SPM23-BD |
Packaging : | Reel |
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
FSB50825US | Full Production | RoHS Compliant | $7.54 | SPM23 | 23 | TAPE REEL | N/A | Line 1: $Y (Fairchild logo) Line 2: FSB50825US Line 3: &H&E&E&E&E&3 |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSB50825US is available. Click here for more information . |

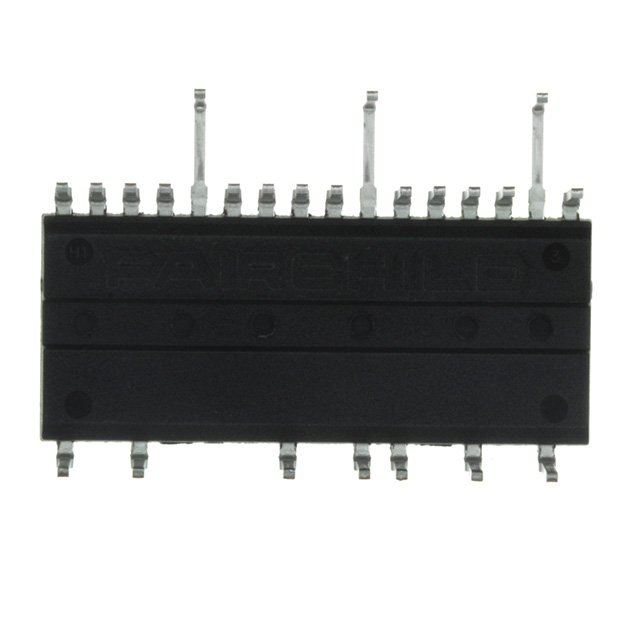

FSB50825US is a tiny smart power module (SPM?) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers. It is composed of 6 fast-recovery MOSFET (FRFET), and 3 half-bridge HVICs for FRFET gate driving. FSB50825US provides low electromagnetic interference (EMI) characteristics with optimized switching speed. Moreover, since it employs FRFET as a power switch, it has much better ruggedness and larger safe operation area (SOA) than that of an IGBT-based power module or one-chip solution. The package is optimized for the thermal performance and compactness for the use in the built-in motor application and any other application where the assembly space is concerned. FSB50825US is the most solution for the compact inverter providing the energy efficiency, compactness, and low electromagnetic interference.
Technical/Catalog Information | FSB50825US |
Vendor | Fairchild Semiconductor (VA) |
Category | Integrated Circuits (ICs) |
Applications | AC Motor Driver, 3 Phase |
Number of Outputs | 1 |
Voltage - Supply | 13.5 V ~ 16.5 V |
Voltage - Load | 150 V ~ 200 V |
Current - Output | 4A |
Operating Temperature | -20°C ~ 100°C |
Package / Case | SPM23BD |
Packaging | Cut Tape (CT) |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | FSB50825US FSB50825US FSB50825USCT ND FSB50825USCTND FSB50825USCT |
