FSAM10SH60

Configuration :
Maximum Gate Emitter Voltage :
Gate-Emitter Leakage Current :
Maximum Operating Temperature :
Collector- Emitter Voltage VCEO Max : 600 V
Packaging : Tube
Power Dissipation : 43 W
Collector-Emitter Saturation Voltage : 2.8 V
Package / Case : SPM32-AA
Continuous Collector Current at 25 C : 10 A


Features:

600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Divided negative dc-link terminals for inverter current sensing applications
Single-grounded power supply due to built-in HVIC
Typical switching frequency of 15kHz
Built-in thermistor for over-temperature monitoring
Inverter power rating of 0.4kW / 100~253 Vac
Isolation rating of 2500Vrms/min.
Very low leakage current due to using ceramic substrate
Adjustable current protection level by varying series resistor value with sense-IGBTs


Application

AC 100V ~ 253V  three-phase inverter drive for small power (0.4kW) ac motor drives
Home appliances applications requiring high switching frequency operation like washing machines drive system
Application ratings:
   - Power : 0.4 kW / 100~253 Vac
   - Switching frequency : Typical 15kHz (PWM Control)
   - 100% load current : 3.0A (Irms)
   - 150% load current : 4.5A (Irms) for 1 minute

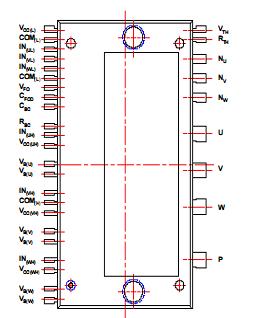

Pinout




Specifications

Item	Symbol	Condition	Rating	Unit
Supply Voltage	VPN	Applied between P-NU,MV,NW	450	V
Supply Voltage (Surge)	VPN(Surge)	Applied between P-NU,MV,NW	500	V
Collector-Emitter Voltage	VCES		600	V
Each IGBT Collector Current	±IC	TC=25	10	A
Each IGBT Collector Current	±IC	TC=100	8	A
Each IGBT Collector Current (Peak)	±ICP	TC=25 Instantaneous Value (Pulse)	20	A
Collector Dissipation	PC	TC=25 per One ChiP	-	W
Operating Junction Temperature	TJ	(Note 1)	-55 ~ 150

Description

 FSAM10SH60 is an advanced smart power module (SPM)that Fairchild has newly developed and designed to provide very compact and low cost, yet high performance ac motor drives mainly targeting high speed low-power inverter driven application like washing machines. FSAM10SH60 combines optimized circuit protection and drive matched to low-loss IGBTs. Highly effective short-circuit current detection/protection is realized through the use of advanced current sensing IGBT chips that allow continuous monitoring of the IGBTs current. System reliability is further enhanced by the built-in over-temperature and integrated under-voltage lock-out protection. The high speed built-in HVIC provides opto-coupler-less IGBT gate driving capability that further reduce the overall size of the inverter system design. In addition the incorporated HVIC facilitates the use of single-supply drive topology enabling the FSAM10SH60 to be driven by only one drive supply voltage without negative bias. Inverter current sensing application can be achieved due to the devided nagative dc terminals.

Parameters:

Technical/Catalog Information	FSAM10SH60
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	10A
Operating Temperature	-20°C ~ 100°C
Package / Case	SPM32AA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSAM10SH60 FSAM10SH60
