Product Details

Description

Features:

Three PLLs with deep reference, feedback, and pos dividers to provide precision clock frequencies
Multiple outputs provide several clocking options
Outputs may be tristated for board testing
S0, S1, and S2 inputs modify output frequencies for design flexibility
3.3V operation
Accepts 5 to 30MHz crystals (see Frequency Table for specific reference frequencies required)
Custom frequency patterns, pinouts, and packages are available. Contact your local AMI Sales Repre- sentative for more information.

Pinout

Connection Diagram

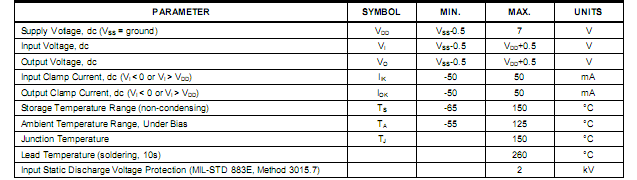

Specifications

Connection Diagram

Description

The FS6322 is a ROM-based CMOS clock generator IC designed to minimize cost and component count in a variety of electronic systems.
Three low-jitter phase-locked loops FS6322 (PLLs) drive up to five low-skew clock outputs to provide a high degree of flexibility. The FS6322 is packaged in a 16-pin SOIC to minimize board space. High-resolution divider capability permits generation of desired frequencies.
