FS6131-01

Features: • Complete programmable control via I2CTMbus• Selectable CMOS or PECL compatible outputs• External feedback loop capability allows genlocking• Tunable VCXO loop for jitter attenuation• Commercial (FS6131-01) and industrial (FS6131-01i) temperature versions a...

product image

FS6131-01 Picture
See larger image
SeekIC No. : 004344214 Detail

FS6131-01: Features: • Complete programmable control via I2CTMbus• Selectable CMOS or PECL compatible outputs• External feedback loop capability allows genlocking• Tunable VCXO loop for...

FS6131-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FS6131-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Complete programmable control via I2CTMbus
• Selectable CMOS or PECL compatible outputs
• External feedback loop capability allows genlocking
• Tunable VCXO loop for jitter attenuation
• Commercial (FS6131-01) and industrial (FS6131-01i) temperature versions available


Application

• Frequency Synthesis
• Line-Locked and Genlock Applications
• Clock Multiplication
• Telecom Jitter Attenuation


Pinout

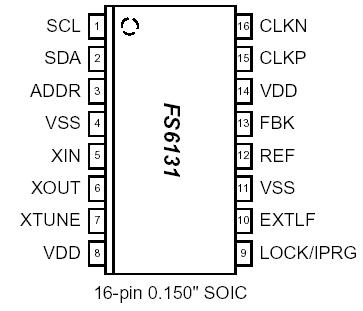

Connection Diagram


Specifications

PARAMETER SYMBOL MIN. MAX. UNITS
Supply Voltage, dc (VSS = ground) VDD VSS-0.5 7 V
Input Voltage, dc VI VSS-0.5 VDD+0.5 V
Output Voltage, dc VO VSS-0.5 VDD+0.5 V
Input Clamp Current, dc (VI < 0 or VI > VDD) IIK -50 50 mA
Output Clamp Current, dc (VI < 0 or VI > VDD) IOK -50 50 mA
Storage Temperature Range (non-condensing) TS -65 150
Ambient Temperature Range, Under Bias TA -65 125
Junction Temperature TJ   150
Lead Temperature (soldering, 10s)     260
Input Static Discharge Voltage Protection (MIL-STD 883E, Method 3015.7)     2 KV



Description

The FS6131-01 is a monolithic CMOS clock generator/ regenerator IC designed to minimize cost and component count in a variety of electronic systems. Via the I2Cbus interface, the FS6131-01 can be adapted to many clock generation requirements.

The ability to tune the on-board voltage-controlled crystal oscillator (VCXO), the length of the Reference and Feedback Dividers, their granularity, and the flexibility of the Post Divider make the FS6131-01 the most flexible stand-alone phase-locked loop (PLL) clock generator available.
