Features:

•  Matches MK3727 center frequency characteristics
•  Phase-locked loop (PLL) device synthesizes output clock frequency from crystal oscillator or external reference clock
•  On-chip tunable voltage-controlled crystal oscillator (VCXO) allows precise system frequency tuning
•  3.3V supply voltage
•  Very low phase noise PLL
•  Use with "pullable" 14pF crystals no external padding capacitors required
•  Small circuit board footprint (8-pin 0.150 SOIC)
•  Custom frequency selections available - contact your local AMI Sales Representative for more information

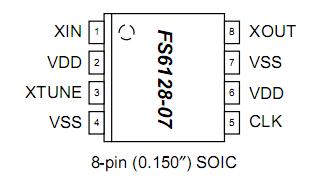

Pinout

  Connection Diagram


Specifications

PARAMETER
SYMBOL
MIN.
MAX.
UNITS
Supply Voltage (VSS = ground)
VDD
VSS-0.5
7
V
Input Voltage, dc
VI
VSS-0.5
VDD+0.5
V
Output Voltage, dc
VO
VSS-0.5
VDD+0.5
V
Input Clamp Current, dc (VI < 0 or VI > VDD)
IIK
-50
50
mA
Output Clamp Current, dc (VI < 0 or VI > VDD)
IOK
-50
50
mA
Storage Temperature Range (non-condensing)
TS
-65
150
°C
Ambient Temperature Range, Under Bias
TA
-55
125
°C
Junction Temperature
TJ
125
°C
Lead Temperature (soldering, 10s)
260
°C
Input Static Discharge Voltage Protection (MIL-STD 883E, Method 3015.7)
2
kV



Description

The FS6128 is a monolithic CMOS clock generator IC designed to minimize cost and component count in digital video/audio systems.

At the core of the FS6128 is circuitry that implements a voltage-controlled crystal oscillator (VCXO) when an external resonator (nominally 13.5MHz) is attached. The VCXO allows FS6128 frequencies to be precisely adjusted for use in systems that have frequency matching requirements, such as digital satellite receivers.

A high-resolution phase-locked loop generates an output clock (CLK) through a post-divider. The CLK frequency of FS6128 is ratiometrically derived from the VCXO frequency. The locking of the CLK frequency to other system reference frequencies can eliminate unpredictable artifacts in video
systems and reduce electromagnetic interference (EMI) due to frequency harmonic stacking.
