FPBL10SH60

Configuration :
Collector- Emitter Voltage VCEO Max :
Collector-Emitter Saturation Voltage :
Maximum Gate Emitter Voltage :
Continuous Collector Current at 25 C :
Gate-Emitter Leakage Current :
Power Dissipation :
Maximum Operating Temperature :
Package / Case :
Packaging :


Features:

• UL Certified No. E209204
• 600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
• Single-grounded power supply due to built-in HVIC
• Typical switching frequency of 15kHz
• Inverter power rating of 0.4kW / 100~253 Vac
• Isolation rating of 2500Vrms/min.
• Very low leakage current due to using ceramic substrate
• Adjustable current protection level by varying series resistor value with sense-IGBTs


Application

• AC 100V ~ 253V three-phase inverter drive for small power (0.4kW) ac motor drives
• Home appliances applications requiring high switching frequency operation like washing machines drive system
• Application ratings:
- Power : 0.4 kW / 100~253 Vac
- Switching frequency : Typical 15kHz (PWM Control)
- 100% load current : 3A (Irms)
- 150% load current : 4.5A (Irms)

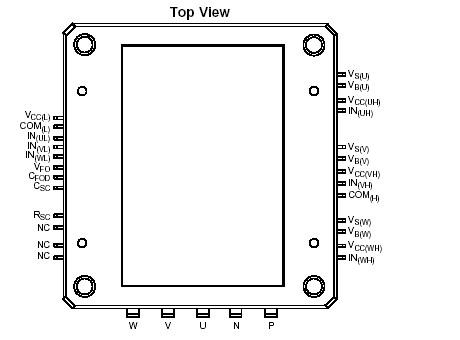

Pinout




Specifications

Item	Symbol	Condition	Rating	Unit
Supply Voltage	VDC	Applied to DC - Link	450	V
Supply Voltage (Surge)	VPN(Surge)	Applied between P- N	500	V
Collector-Emitter Voltage	VCES		600	V
Each IGBT Collector Current	± IC	TC = 25°C (Note Fig. 4)	10	A
Each IGBT Collector Current (Peak)	± ICP	TC = 25°C (Note Fig. 4)	20	A
Collector Dissipation	PC	TC = 25°C per One Chip	43	W
Operating Junction Temperature	TJ	(Note 1)	-55 ~ 150	°C

Description

FPBL10SH60 is an advanced smart power module (SPM) that Fairchild has newly developed and designed to providevery compact and low cost, yet high performance ac motor drives mainly targeting high speed low-power inverterdriven application like washing machines. FPBL10SH60 combines optimized circuit protection and drive matched to low-loss IGBTs. Highly effective short-circuit current detection/ protection is realized through the use of advanced currentsensing IGBT chips that allow continuous monitoring of the IGBTs current. System reliability is further enhanced by the integrated under-voltage lock-out protection. The high speed built-in HVIC provides opto-coupler-less IGBT gate driving capability that further reduce the overall size of the inverter system design. In addition the incorporated HVIC facilitates the use of single-supply drive topology enabling  the FPBL10SH60 to be driven by only one drive supply voltage without negative bias.
