Product Details

Description



Features:

· Composite type with NPN transistor and Schottoky barrier diode facilitating high-density mounting.
· The FP302 is composed of chips equivalent to the 2SC4520 and SB05-05CP, which are placed in one package.

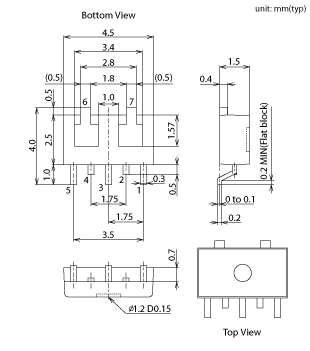

Pinout



Connection Diagram




Specifications

Absolute maximum ratings
VCEO [V] 45
IC [A] 1.5
PC [W] 0.8
When mounted on ceramic substrate (250mm²×0.8mm) 1unit
VRRM [V] 50
IO [A] 0.5
Electrical characteristics
hFE min 100
hFE max 400
VCE [V] 2
IC [A] 0.1
VCE (sat) typ [V] 0.25
VCE (sat) max [V] 0.7
IC [A] 0.8
IB [mA] 40
VF max [V] 0.55
IF [A] 0.5
IR max [mA] 0.05
VR [V] 25
trr max [nS] 10
IF [A] 0.1


Parameter
Symbo
Conditions
Ratings
Unit
[TR]
Collector-to-Base Voltage
VCBO
60
V
Collector-to-Emitter Votage
VCEO
45
V
Emitter-to-Base Voltage
VEBO
5
V
collector current
IC
1.5
A
Collector Current(Pulse)
ICP
3
A
Base current
IB
300
mA
Collector Dissipation
PC
Mounted on ceramic board (250mm2×0.8mm)
0.8
W
Junction Temperature
TJ
150
°C
[SBD]
Repetitive Peak Reverse Volatage
VRRM
50
V
Non-repetitive Peak Reverse Surge Voltage
VRSM
55
V
Average-rectified Current
IO
500
Am
Surge Forward Current
IFSM
50HZ sine wav,1cycle
5
A
Junction Temperature
Tj
-55to+125
°C
Storage Temperature
Tstg
-55to+125
°C
