FOD2742B

Maximum Collector Emitter Saturation Voltage : 0.4 V
Maximum Forward Diode Voltage : 1.5 V
Maximum Collector Current : 50 mA
Maximum Operating Temperature : + 85 C
Packaging : Bulk
Input Type : DC
Isolation Voltage : 2500 Vrms
Maximum Collector Emitter Voltage : 70 V
Current Transfer Ratio : 200 %
Package / Case : SOIC-8 Narrow
Maximum Power Dissipation : 145 mW
Minimum Operating Temperature : - 25 C


Features:

Optocoupler, precision reference and error amplifier in single package
2.5V reference
CTR 100% to 200%
2,500V RMS isolation
UL approval E90700, Volume 2
BSI approval 8661, 8662
VDE approval 136616
CSA approval 1113643
Low temperature coefficient 50 ppm/°C max
FOD2742A: tolerance 0.5%
FOD2742B: tolerance 1%
FOD2742C: tolerance 2%




Application

Power supplies regulation
DC to DC converters

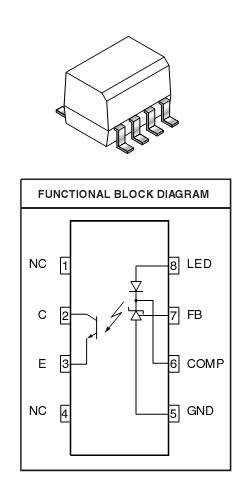

Pinout






Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
FOD2742B	Full Production	RoHS Compliant	$0.357	SOIC	8	BOX	TBD
FOD2742BR1	Lifetime Buy	RoHS Compliant	N/A	SOIC	8	TAPE REEL	TBD
FOD2742BR1V	Lifetime Buy	RoHS Compliant	N/A	SOIC	8	TAPE REEL	TBD
FOD2742BR2	Full Production	RoHS Compliant	$0.386	SOIC	8	TAPE REEL	TBD
FOD2742BR2V	Full Production	RoHS Compliant	$0.386	SOIC	8	TAPE REEL	TBD
FOD2742BV	Full Production	RoHS Compliant	$0.357	SOIC	8	BOX	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Description

The FOD2742 Optically Isolated Amplifier consists of the popular KA431 precision programmable shunt reference and an optocoupler. The optocoupler is a gallium arsenide (GaAs) light emitting diode optically coupled to a silicon phototransistor. FOD2742 comes in 3 grades of reference voltage tolerance = 2%, 1%, and 0.5%.

The Current Transfer Ratio (CTR) ranges from 100% to 200%. FOD2742 also has an outstanding temperature coefficient of 50 ppm/°C. It is primarily intended for use as the error amplifier/reference voltage/optocoupler function in isolated ac to dc power supplies and dc/dc converters.

When using the FOD2742, power supply designers can reduce the component count and save space in tightly packaged designs. The tight tolerance reference eliminates the need for adjustments in many applications. The FOD2742 comes in a 8-pin small outline package.

Parameters:

Technical/Catalog Information	FOD2742B
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Isolation Voltage	2500Vrms
Input Type	DC
Output Type	Transistor
Current - Output/Channel	50mA
Voltage - Output	70V
Vce Saturation (Max)	400mV
Current Transfer Ratio (Min)	100% @ 10mA
Mounting Type	Surface Mount
Package / Case	8-SOIC
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FOD2742B FOD2742B
