FOA3251B1

Features: • Data rate up to 2.633 Gb/s• All jitter data meet ITU-T G958 and GR-253-Core requirements• Supply range from +3.0 V to 5.0 V• Supply current < 210 mA• Input sensitivity < 5 mVpp differential (BER = 10-12)• Loss of signal (LOS) detection• P...

product image

FOA3251B1 Picture
See larger image
SeekIC No. : 004342923 Detail

FOA3251B1: Features: • Data rate up to 2.633 Gb/s• All jitter data meet ITU-T G958 and GR-253-Core requirements• Supply range from +3.0 V to 5.0 V• Supply current < 210 mA• Inp...

FOA3251B1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FOA3251B1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Data rate up to 2.633 Gb/s
• All jitter data meet ITU-T G958 and GR-253-Core requirements
• Supply range from +3.0 V to 5.0 V
• Supply current < 210 mA
• Input sensitivity < 5 mVpp differential (BER = 10-12)
• Loss of signal (LOS) detection
• Programmable delay element to adjust clock- to data output
• Lock indication


Application

• Fibre optic communication systems
• SDH / SONET / ATM applications


Pinout

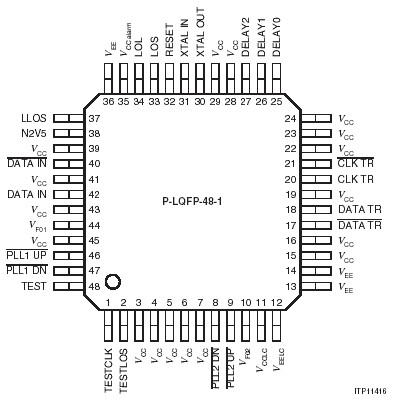

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit
min. max.
IC supply voltage (VCC - VEE)     6 V
Voltage on any pin VS -0.4 VDDP + 0.4
Maximum junction temperature     125 °C
Storage temperature Tstg -4.0 150
Protection supply voltage VDDP VEE - 0.5 VCC V
ESD robustness
HBM: 1.5 k, 100 pF		 VESD,HBM   500
Lead temperature range     Package
