FOA2251A1

Features: · Data rate up to 2.5 Gb/s· Supply range from + 3.0 V to + 5.0 V· Maximum power consumption typically 50 mA· Modulation current programmable up to 60 mA· DC offset programmable up to 60 mA· Temperature coefficient of the laser diode adjustable· Integrated bias control· Integrated laser s...

product image

FOA2251A1 Picture
See larger image
SeekIC No. : 004342920 Detail

FOA2251A1: Features: · Data rate up to 2.5 Gb/s· Supply range from + 3.0 V to + 5.0 V· Maximum power consumption typically 50 mA· Modulation current programmable up to 60 mA· DC offset programmable up to 60 mA...

FOA2251A1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FOA2251A1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Data rate up to 2.5 Gb/s
· Supply range from + 3.0 V to + 5.0 V
· Maximum power consumption typically 50 mA
· Modulation current programmable up to 60 mA
· DC offset programmable up to 60 mA
· Temperature coefficient of the laser diode adjustable
· Integrated bias control
· Integrated laser supervisor for all vital laser functions


Application

· Fiber optics data communication systems
· SONET OC-48, SDH STM-16

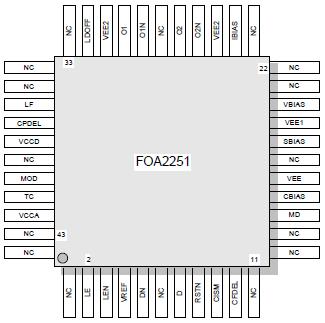

Pinout

Connection Diagram


Specifications

Rating
Unit
Min
Max
Note
Supply Voltage
V
-0.5
5.5
Output Voltage at O, ON, BIAS, LDOFF, SBIAS
V
-0.5
VCC +0.7V
Output Voltage at Logic Output LF
V
-0.7
VCC +0.7V
Note 1
Input Voltage at MD
V
-0.5
5.5
Input Voltage at Logic Inputs LE, LEN, RSTN
V
-0.7
VCC +0.7V
Differential Data Input Voltage |VD - VDN|
V
2.5
LDOFF Low Output Voltage
V
VCC-1.2
Modulation Current at O,ON
mA
80
Bias Current at IBIAS
mA
80
Output Current Low at LF
mA
3
Junction Temperature
-40
125
Storage Temperature
-55
150
Relative Humidity (non-condensing)
%
95
Electrostatic Discharge Voltage Capability
kV
2
D/DN and O/ON
excluded
Electrostatic Discharge Voltage Capability
kV
1
D/DN
Note 2
Notes:
1. A short-circuit at these outputs, either at logic high or low level, will not damage the device.
2. The input capacitance at these inputs will not exceed 0.6 pF.
