FOA1251A1

Features: • Data rate up to 2.5 Gbit/s• Full ITU-T G958 specification compliance• Input sensitivity 23.5 dBm at BER = 109• High overload: 2 mApp maximum input current• Single supply voltage: + 4.5 V to + 5.5 V• Internal DC-compensation loop increases dynamic ran...

product image

FOA1251A1 Picture
See larger image
SeekIC No. : 004342917 Detail

FOA1251A1: Features: • Data rate up to 2.5 Gbit/s• Full ITU-T G958 specification compliance• Input sensitivity 23.5 dBm at BER = 109• High overload: 2 mApp maximum input current• ...

FOA1251A1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FOA1251A1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Data rate up to 2.5 Gbit/s
• Full ITU-T G958 specification compliance
• Input sensitivity 23.5 dBm at BER = 109
• High overload: 2 mApp maximum input current
• Single supply voltage: + 4.5 V to + 5.5 V
• Internal DC-compensation loop increases dynamic range
• No external components needed
• Internal bias generation for PIN-photodiode
• Internal low-pass filter to improve power supply rejection
• Operates with PIN- or APD-photodiode
• Monitor output for mirrored photodiode current
• Additional pair of complementary output pins optimized for TO packages


Application

• Fibre optics data communication systems: SDH, SONET, ATM, OC, STM
• Pre-amplifier modules

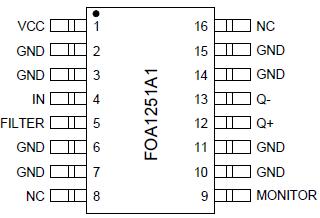

Pinout

Connection Diagram


Specifications

Tamb = -40 ... +85
Parameter Symbol Limit Values Unit Remarks
min. max.
Supply voltage VCC -0.5 6.0 V
Junction temperature Tj -40 +125
Storage temperature TS -40 +125
Relative ambient humidity     85/85 %/ no condensation
ESD integrity VESD 500   V see note
Note: HBM according to MIL STD 883D, method 3015.7 and ESD Assn. Standard S5.1-1993
