Features: • 200ms power-on reset delay• Low VCC detection and reset assertion-Five standard reset threshold voltages-Adjust low VCC reset threshold voltage using special programming sequence-Reset signal valid to VCC = 1V• Selectable nonvolatile watchdog timer-0.2, 0.6, 1.4 secon...
FN8125.1: Features: • 200ms power-on reset delay• Low VCC detection and reset assertion-Five standard reset threshold voltages-Adjust low VCC reset threshold voltage using special programming sequ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Temperature under bias ................ -65°C to +135°C
Storage temperature ..................... -65°C to +150°C
Voltage on any pin with
respect to VSS .................................... -1.0V to +7V
D.C. output current ...............................................5mA
Lead temperature (soldering, 10s) .................. 300°C
COMMENT
Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; the functional operation of the device (at these or any other conditions above those listed in the operational sections of this datasheet) is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

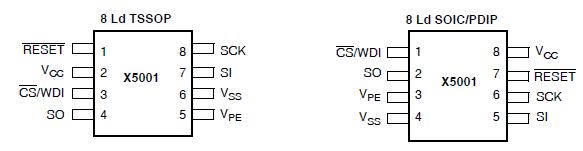

FN8125.1 combines three popular functions, Poweron Reset, Watchdog Timer, and Supply Voltage Supervision in one package. This combination lowers system cost, reduces board space requirements, and increases reliability.
The watchdog timer FN8125.1 provides an independent protection mechanism for microcontrollers. During a system failure, the device will respond with a RESET signal after a selectable time out interval. The user selects the interval from three preset values. Once selected, the interval does not change, even after cycling the power.
The user's system is protected from low voltage conditions by the FN8125.1's low VCC detection circuitry. When VCC falls below the minimum VCC trip point, the system is reset. RESET is asserted until VCC returns to proper operating levels and stabilizes. Five industry standard VTRIP thresholds are available, however, Intersil's unique circuits allow the threshold to be reprogrammed to meet custom requirements or to fine-tune the threshold for applications requiring higher precision.
The FN8125.1 utilizes Intersil's proprietary Direct Write™ cell for the watchdog timer control bits and the VTRIP storage element, providing a minimum endurance of 100,000 write cycles and a minimum data retention of 100 years.
