Features:

Three selectable sixth-order 15/32MHz (PS/HD) filters
Three fixed sixth-order 8MHz (SD) filters with muxed input
Transparent input clamping
Single video load drive (2Vpp, 150, AV = 6dB)
AC or DC-coupled inputs
AC or DC-coupled outputs
DC-coupled outputs eliminate AC-coupling capacitors
Low Power
5V only
Lead (Pb) Free packages - TSSOP-20




Application

Cable and Satellite set top boxes
DVD players
HDTV
Personal Video Recorders (PVR)
Video On Demand (VOD)




Pinout

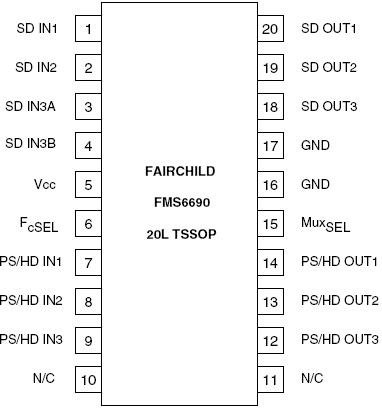

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FMS6690MTC20 Not recommended for new designs RoHS Compliant N/A TSSOP 20 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 6690 Line 3: MTC20
FMS6690MTC20X Full Production RoHS Compliant $1.09 TSSOP 20 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 6690 Line 3: MTC20
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FMS6690 is available. Click here for more information .


Parameter Min. Max. Unit
DC Supply Voltage -0.3 6 V
Analog and Digital I/O -0.3 Vcc + 0.3 V
Output Current Any One Channel, Do Not Exceed 50 mA





Description

The FMS6690 Low Cost Video Filter (LCVF) is intended to replace passive LC filters and drivers with a low-cost integrated device. Six 6th order Butterworth filters provide improved image quality compared to typical passive solutions. The combination of low power Standard Definition (SD), Progressive Scan (PS), and High Definition (HD) filters greatly simplify DVD video output circuitry. Three channels offer fixed SD filters and feature an additional muxed input, while the other three channels are selectable between PS and HD filters. The FMS6690 offers a fixed gain of 6dB.

The FMS6690 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal diode clamps and bias circuitry may be used if AC-coupled inputs are required (see applications section for details).

The outputs of FMS6690 can drive AC or DC-coupled single (150W) video loads. DC-coupling the outputs removes the need for output coupling capacitors. The input DC levels will be offset approximately +280mV at the output.
