FMS6418B

Features:

·Three video anti-aliasing or reconstruction filters
·YUV/RGB/YPbPr signal support
·2:1 MUX inputs for multiple RGB/YUV/YPbPr inputs
·Selectable 8MHz or 32MHz 6th order filters for SD/HD applications
·DC coupled input, AC coupled output
·All outputs can drive AC coupled 150Ω loads and provide 6dB of gain
·0.6% differential gain with 0.15° differential phase
·36dB/octave roll-off on all channels
·Lead (Pb) Free packages - SOIC-16 or TSSOP-14

Application

·Cable set-top boxes
·Satellite set-top boxes
·DVD players
·HDTV
·Personal Video Recorders (PVR)
·Video On Demand (VOD

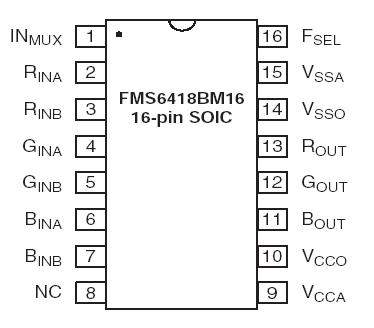

Pinout

Specifications

Parameter	Min.	Max.	Unit
DC Supply Voltage	-0.3	6	V
Analog and Digital I/O	-0.3	VCCO +0.3	V
Output Current Any One Channel (Do Not Exceed)		35	mA

Description

The FMS6418B offers comprehensive filtering for set-top box or DVD applications. This part consists of a triple 6th order filter with selectable 32MHz or 8MHz frequencies.

A 2-to-1 multiplexer FMS6418B is provided on each filter channel. The triple filters can accomodate either YUV, RGB, or YPbPr signals. All channels accept DC coupled ground-referenced 1V signals.

The FMS6418B provide 2Vpp signals into AC coupled terminated loads. The low-pass filters are powered by 3.3V and the outputs by 5.0V.

The FMS6418B is available in both 16-pin SOIC and 14-pin TSSOP packages.
