Description



Features:

YUV/RGB filters
2:1 Mux inputs for multiple RGB/YUV inputs
Selectable 8MHz or 30MHz 6th order filters for RGB (YUV)applications
8MHz 6th order Y, C filters with composite summer
Modulator output with FCC group delay predistortion
AC or DC coupled input, AC coupled output
All outputs can drive AC coupled 75loads andprovide 6dB of gain
Dual multiplexed inputs
1% differential gain with 1° differential phase
36dB/octave roll-off on all channels
Pin compatible upgrade to the award winning FMS6417


Application

Cable set top boxes
Satellite set top boxes
DVD players
HDTV
Personal Video Recorders (PVR)
Video On Demand (VOD)
Media Centers


Pinout

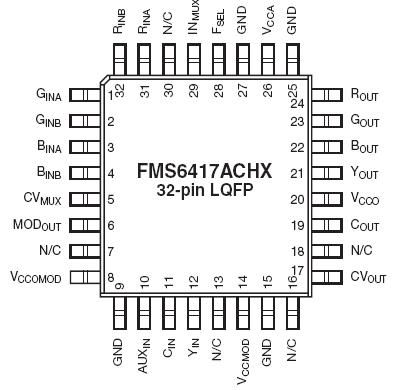

Connection Diagram


Specifications

Parameter Min. Max. Unit
DC Supply Voltage -0.3 6 V
Analog and Digital I/O -0.3 Vcc + 0.3 V
Output Current Any One Channel, Do Not Exceed   60 mA



Description

The FMS6417A offers comprehensive filtering for set top box orDVD applications. FMS6417A consists of a triple 6th order filterwith selectable 30MHz or 8MHz frequencies and a dual filter for filtering Y,C with a composite summer and a modulator channel with sound-notch and FCC group delay compensation. The FMS6417A provides sound-notching and FCC group delay compensation for NTSC. 2-to-1 multiplexers are provided on the triple filters as well as provisions for auxiliary inputs to the composite channel. The triple filters are intended for either YUV or RGB signals. All channels accept AC or DC coupled ground-referenced 1V signals. The filters output 2V pp signals into AC coupled terminated loads. The lowpass filters are powered by 3.3V and the modulator and outputs by 5.0V.
