Features: 5.0 MHz 5th order Y,C filters with composite summer Selectable for 0dB or 6dB gain 50dB stopband attenuation at 27MHz on Y, C and CV outputs No external frequency selection components or clocks AC-Coupled Inputs AC or DC-Coupled Outputs Continuous time low pass filters 0.4% / 0.4° diffe...
FMS6400-1: Features: 5.0 MHz 5th order Y,C filters with composite summer Selectable for 0dB or 6dB gain 50dB stopband attenuation at 27MHz on Y, C and CV outputs No external frequency selection components or ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Min. | Max. | Unit |
DC Supply Voltage | -0.3 | 6 | V |
Analog and Digital I/O | -0.3 | Vcc + 0.3 | V |
Output Current Any One Channel, Do Not Exceed | 40 | mA |

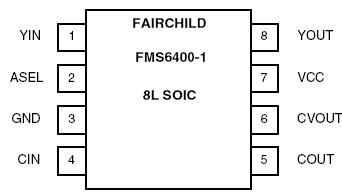

The FMS6400-1 is a dual Y/C 5th order Butterworth lowpass video filter optimized for minimum overshoot and flat group delay. The FMS6400-1 also contains a summing circuit to generate filtered composite video. In a typical application, the Y and C input signals from DACs are AC coupled into the filters. Both channels have DC restore circuitry to clamp the DC input levels during video sync. The Y and C channels use separate feedback clamps. The clamp pulse is derived from the Y channel.
All outputs of FMS6400-1 are capable of driving 2Vpp, AC or DC coupled, into either a single or dual video load. A single video load consists of a series 75 impedance matching resistor connected to a terminated 75 line. This presents a total of 150 of loading to the part. A dual load would be two of these in parallel which would present a total of 75 to the part. The gain of the Y, C and CV signals can be selected for 0dB or 6dB with 1Vpp input levels. All video channels of FMS6400-1 are clamped during sync to establish the appropriate output voltage reference levels.
