Series: -
Packaging: Cut Tape (CT)Alternate Packaging
Features: SPDT
RF Type: General Purpose
Frequency: 0Hz ~ 6GHz
Supplier Device Package: 12-QFN (3x3)
Manufacturer: RFMD
Package / Case: 12-VFQFN Exposed Pad

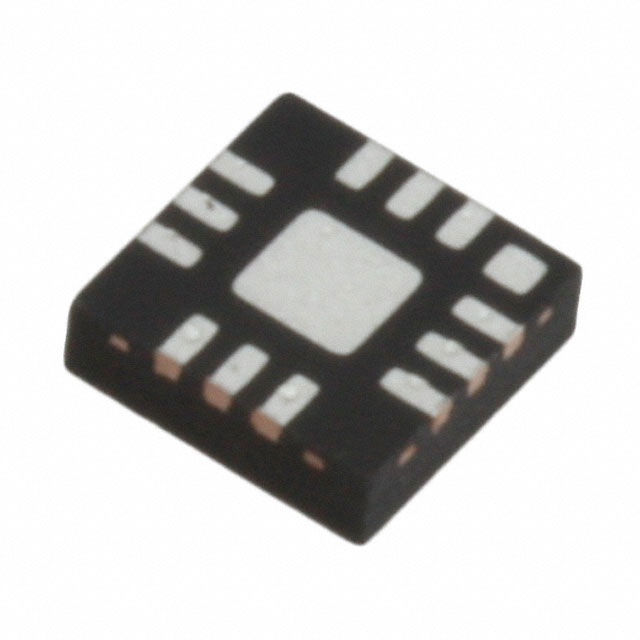

Features: ` 3x3x0.9mm Packaged pHEMT Switch
` Ideal for WiMax, L, S, and C-band digital cellular, and WLAN applications
` High isolation, 36dB typ at 3.5GHz
` Low insertion loss, 0.5dB typ at 2.5GHz
` Low insertion loss, 0.96dB typ at 6GHz
` P1dB 42dBm at 5GHz
` Operates from a single positive voltage
` Less than 10A control current at 35dBm input power
` RoHS compliantApplicationThe FMS2031-001 is a 10 Watt, low loss, and single pole dual throw Gallium Arsenide antenna switch. The die is fabricated using the Filtronic FL05 0.5m switch process technology, which offers leading edge performance optimised for switch applications. The FMS2031-001 is designed for use in WiMax, L, S, and C band wireless applications and WLAN access points where high linearity switching is required.
Specifications
|
Parameter |
Symbol |
Absolute Maximum |
| Max Input Power |
Pin |
+42dBm |
| Control Voltage |
Vctrl |
+6V |
| Operating Temperature |
Toper |
-40°C to +100°C |
| Storage Temperature |
Tstor |
-55°C to +150°C |
Note: Exceeding any one of these absolute maximum ratings may cause permanent damage to the deviceDescriptionThe FMS2031-001 is a 10 Watt, low loss, and single pole dual throw Gallium Arsenide antenna switch. The die is fabricated using the Filtronic FL05 0.5m switch process technology, which offers leading edge performance optimised for switch applications. The FMS2031-001 is designed for use in WiMax, L, S, and C band wireless applications and WLAN access points where high linearity switching is required.
FMS2031-001 Data Sheet
