FMM3193VI

Features: • Operation DC to 2.5Gbit/s, NRZ• Modulation Current Drive Only• Capability to Drive Direct Modulation Laser and MI-Laser• Maximum Peak Current of 80mA Typical@RL = 24Ω• Peak-to-Peak Output Voltage, Min: 3V@RL = 50Ω• Single-ended or Differe...

product image

FMM3193VI Picture
See larger image
SeekIC No. : 004342653 Detail

FMM3193VI: Features: • Operation DC to 2.5Gbit/s, NRZ• Modulation Current Drive Only• Capability to Drive Direct Modulation Laser and MI-Laser• Maximum Peak Current of 80mA Typical@RL =...

FMM3193VI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FMM3193VI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation DC to 2.5Gbit/s, NRZ
• Modulation Current Drive Only
• Capability to Drive Direct Modulation Laser and MI-Laser
• Maximum Peak Current of 80mA Typical@RL = 24Ω
• Peak-to-Peak Output Voltage, Min: 3V@RL = 50Ω
• Single-ended or Differential ECL Input
• Single-5.2V Power Supply
• Small Outline Package similar to SSOP-16


Pinout

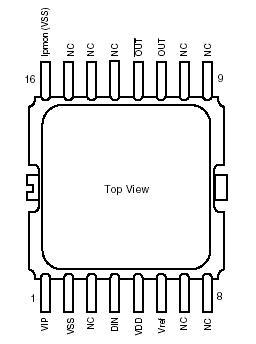

Connection Diagram


Specifications

Parameter Symbol Ratings Unit
Supply Voltage VSS -7.0 to 0 V
Input Voltage VIN VSS to 0 V
Power Supply Current ISS 300 mA
Peak Current Control Voltage VIP VSS -2.0 to VSS +1.2 V
Output Voltage* Vout, Vout -3.1 to +0.6 V
Storage Temperature Tstg -55 to 125 °C

(*) Applied in less than 10 min.




Description

The FMM3193VI GaAs Laser Driver is a high-rate driver circuit designed for fiber optic transmitters operating at NRZ data rates up to 2.5Gbit/s. The FMM3193VI is capable of driving high-power Laser diodes at peak current up to 80mA typically, and driving MI-Laser at peak-to-peak voltage of 3V. The FMM3193VI outputs only modulation current, and an external bias current circuit is required. This driver is assembled in a small outline ceramic package having a similar footprint to SSOP-16.
