Features:

 Automatic reset generation on power-up
Minimum 140 ms reset pulse
Internal 5k pull-up resistor
Other reset pulse choices available: 32 - 256 ms
Operating temperature
   -40°C to + 105°C (SOT-23)
   -40°C to +85°C (SC70)
Choice of Reset Thresholds: 4.63V, 4.38V, 4.00V, 3.08V, 2.93V, 2.63V
SOT23-3 and SC70-3 Packages


Pinout

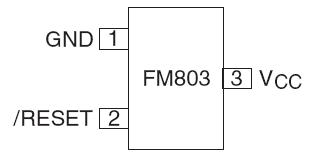

Connection Diagram


Specifications

Voltage on any terminal relative to GND
VCC                                                                      -0.3V to +6.0V
/RESET                                                                 -0.3V to +6.0V
Input Current                                                                     20mA
Output Current: /RESET                                                     20mA
Rate of Rise of VCC                                                        100V/s
Continuous Power Dissipation (TA = +70°C)
SOT23-3 (derate 4mW/°C above +70°C)                     320mW
Operating Temperature Range                      -40°C to +105°C
Storage Temperature Range                         -65°C to +150°C
Lead Temperature (soldering, 10s)                               +300°C


Description

The FM803 is a supervisory device designed to monitor power supply or other system voltage. FM803 generates a reset pulse whenever the voltage being monitored is out of tolerance. Once asserted, the reset pulse is guaranteed to be valid for a minimum of 140ms (256ms typical ). The reset output of FM803 is of active low Open-Drain type and has an internal pull-up resistor
