FM20

Features: * Analog Output, -11.77mV/°C* Range, -55 to 130°C* Accuracy, ±1°C at 25°C* Supply Current, 9A typical* Output Drive, 1A* Self-heating < 0.021°C* Operating Voltage: +2.4V to +6VApplication* Mobile Phones* Computers* Battery Management* Office Equipment* HVAC* Power Supply Modules* Disk...

product image

FM20 Picture
See larger image
SeekIC No. : 004342191 Detail

FM20: Features: * Analog Output, -11.77mV/°C* Range, -55 to 130°C* Accuracy, ±1°C at 25°C* Supply Current, 9A typical* Output Drive, 1A* Self-heating < 0.021°C* Operating Voltage: +2.4V to +6VApplicati...

FM20 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FM20
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Analog Output, -11.77mV/°C
* Range, -55 to 130°C
* Accuracy, ±1°C at 25°C
* Supply Current, 9A typical
* Output Drive, 1A
* Self-heating < 0.021°C
* Operating Voltage: +2.4V to +6V




Application

* Mobile Phones
* Computers
* Battery Management
* Office Equipment
* HVAC
* Power Supply Modules
* Disk Drives
* Automotive




Pinout

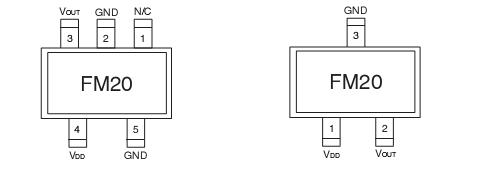

Connection Diagram




Specifications

Parameter Min Typ Max. Units
Supply Voltage +7 V
Output Voltage VDD + 0.5 V
Output Current -20/+1 A
Storage Temperature Range -60 +150 °C
Lead Soldering Temperature 220 °C

ESD2
Human Body Model
Machine Model

2000

250

V

V






Description

As a precision CMOS temperature sensor, the FM20 is cost-effective for accurate low-power temperature monitoring applications. Output voltage versus temperature is extremely linear. With no load, the supply current is typically 1µA. For normal operation, the load on VOUT should be 5MW or less.

In a typical application, a remotely mounted FM20 is monitored by a microcontroller with an analog A/D converter input. Alternatively, the FM20 can drive a comparator with a high impedance input.

Accuracy of FM20 is typically ±1°C at room temperature; and better than ±2.5°C from 0 to 50°C.

Available packages of FM20 are surface mount 5-pin SC70 and 3-pin SOT-23.
